LT1 intake conversion, in progress, on Sportsman IIs

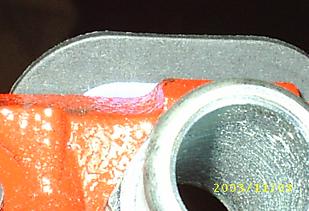

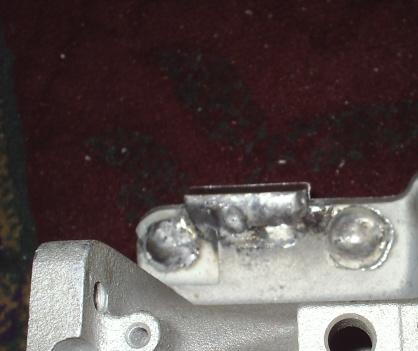

I got my intake back from the machine shop today, as I had to have .050 taken off each intake face to match up right, as my block and heads have been decked. Here are some pics of the welding that was done to cover the coolant ports completely.
The first one has a line drawn where the aluminum stock was added.
The first one has a line drawn where the aluminum stock was added.
Supreme Member
Joined: Jun 2001
Posts: 9,550
Likes: 4
From: Charleston, SC
Car: 91 Camaro Vert
Engine: 02 LS1, HX40
Transmission: 2002 LS1 M6
cool... good job.
im going to have to do that for my dart heads too..
im using it as my excuse to get the alum welding kit for my mig welder
did you take any before pics of when it was on there, but not covering the coolent ports?
im going to have to do that for my dart heads too..
im using it as my excuse to get the alum welding kit for my mig welder
did you take any before pics of when it was on there, but not covering the coolent ports?
Joined: Nov 2002
Posts: 491
Likes: 1
From: Wichita, KS
Car: 88 Trans Am GTA
Engine: 5.1L Gen III
Transmission: T56
Axle/Gears: 3.70
Looking good, I'm hoping for at least somthing close to that. I had to have my intake welded to cover the EGR ports, and I went ahead and had the guy weld some on top of the coolant ports too while he was there. Never know what heads I'll use in the future. Of course I didn't have that handy picture handy like that one, thanks 85TransAm406. I think He'll probably get enough material on there, but we'll see. He repairs aluminum cylinder heads all day so I can't wait to see how good his welds are.
Trending Topics
Thread Starter
Senior Member
iTrader: (1)
Joined: Oct 2003
Posts: 652
Likes: 0
From: Montgomery, AL
Car: 1985 Trans Am
I would have had to have material added over the EGR ports if they were opened up also. When my intake was set on the engine it was clear the there was about 1/8" of the EGR port showing, but the intake gasket covers it up, and the ports in my heads aren't drilled through, so no problem for me. I'm not extremely happy with the welding job, but we'll see how it holds up when torqued down. I still gotta figure out how i'm gonna do the bolt holes on top, with the difference in angles. I know I could just grind it, but that's kinda crappy lookin.
Supreme Member
Joined: Jan 2003
Posts: 1,304
Likes: 0
From: West Des Moines, IA
Car: 2008.5 Mazdaspeed 3 GT
Engine: 2.3 DISI Turbo
Transmission: 6 speed MT
Originally posted by 85TransAm406
I still gotta figure out how i'm gonna do the bolt holes on top, with the difference in angles. I know I could just grind it, but that's kinda crappy lookin.
I still gotta figure out how i'm gonna do the bolt holes on top, with the difference in angles. I know I could just grind it, but that's kinda crappy lookin.
Supreme Member
Joined: Jun 2001
Posts: 9,550
Likes: 4
From: Charleston, SC
Car: 91 Camaro Vert
Engine: 02 LS1, HX40
Transmission: 2002 LS1 M6
Originally posted by bnoon
If you have a drill press with a big enough vice to hold the intake, you can use a Forstner bit. The aluminum is soft enough that it will cut, but if you have a cheap Forstner bit it will be enough to kill it after drilling enough holes with it... It should make it through the intake manifold's amount of holes just fine though...
If you have a drill press with a big enough vice to hold the intake, you can use a Forstner bit. The aluminum is soft enough that it will cut, but if you have a cheap Forstner bit it will be enough to kill it after drilling enough holes with it... It should make it through the intake manifold's amount of holes just fine though...
lol, i didnt know what a Forstner bit was, so i did a search.... just thought id share the info... and yea, that could work..
from: http://www.wisegeek.com/what-is-a-forstner-bit.htm
What is a forstner bit?

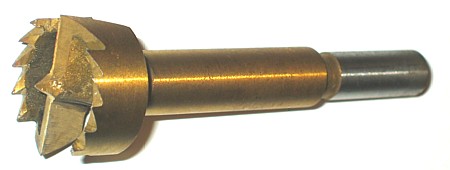

Drill bits are used in conjunction with hand drills or drill presses to make holes in woods, plastic and metals. A forstner bit is a particular type of drill bit that is often used in furniture making and other woodworking projects. They are usually more expensive than standard twist bits, but they have a few unique features that make them desirable.
