3.1 upper on 2.8?
#1
Supreme Member
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
Thread Starter
Join Date: Mar 2001
Location: Renton, WA
Posts: 2,262
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Camaro, 1986 Trans Am
Engine: 5.0L carbed and 5.0L TPI
Transmission: TH700R4
Axle/Gears: 3.23 and 3.27 posi
3.1 upper on 2.8?
My local bone yard has several 3.1 Camaros (and a Firebird). I was thinking about getting a 3.1 upper intake plenum for my 2.8 mainly so I could delete that plastic IAC tube. Will my 2.8 IAC work with the 3.1 upper?
#2
Supreme Member
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
Thread Starter
Join Date: Mar 2001
Location: Renton, WA
Posts: 2,262
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Camaro, 1986 Trans Am
Engine: 5.0L carbed and 5.0L TPI
Transmission: TH700R4
Axle/Gears: 3.23 and 3.27 posi
20 views with no responces? Someone must know the answer to this.
![Frown](https://www.thirdgen.org/forums/images/smilies/frown.gif)
#3
If what you were saying made any sense at all, you'd probably have more replies.
The plastic iac tube? Last time I checked the MPFI 2.8 uses the same style IAC and TPS as most TPI cars, while the 3.1L uses the later style compact IAC and TPS. Neither configuration uses a plastic tube for the IAC.
Theoretically, a 3.1L intake plenum would work on a 2.8L, but there would really be no advantage since the plenum really has nothing to do with the IAC. It does however have to do with the EGR system on the 3.1L. If you wanted to change IAC styles from early to late you would want to change the throttle body, not the plenum. Incidently both early and late style TPS/IAC use the same wiring, just different plugs. Clip and splice the late style plugs into your harness and you could plug and play, but honestly I still can't see any reason why you'd want to do that.
Perhaps you should try posting a picture of what you're talking about, or consult a service manual for your car and figure out the proper terminology.
The plastic iac tube? Last time I checked the MPFI 2.8 uses the same style IAC and TPS as most TPI cars, while the 3.1L uses the later style compact IAC and TPS. Neither configuration uses a plastic tube for the IAC.
Theoretically, a 3.1L intake plenum would work on a 2.8L, but there would really be no advantage since the plenum really has nothing to do with the IAC. It does however have to do with the EGR system on the 3.1L. If you wanted to change IAC styles from early to late you would want to change the throttle body, not the plenum. Incidently both early and late style TPS/IAC use the same wiring, just different plugs. Clip and splice the late style plugs into your harness and you could plug and play, but honestly I still can't see any reason why you'd want to do that.
Perhaps you should try posting a picture of what you're talking about, or consult a service manual for your car and figure out the proper terminology.
#4
Supreme Member
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
Thread Starter
Join Date: Mar 2001
Location: Renton, WA
Posts: 2,262
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Camaro, 1986 Trans Am
Engine: 5.0L carbed and 5.0L TPI
Transmission: TH700R4
Axle/Gears: 3.23 and 3.27 posi
Drew, perhaps you should do a little more research before flaming me. I am very familiar with the LB8 but not so much the slight, but important differences in the LH0.
On the LB8, YES, there is a PLASTIC tube from the throttle body (from the IAC housing to be exact) which runs under the upper intake manifold and into a fitting (the same fitting used by the PCV valve) at the rear top of the lower intake manifold. When the IAC valve opens, engine vacuum pulls air through this tube into the intake manifold. The 3.1s use a slightly different IAC setup which eliminates this tube. Perhaps the only difference is the throttle body. I don't know (which is why I asked). Perhaps I should have asked, "is the 3.1s IAC setup compatable with the 2.8?" or "will the 3.1 throttle body work with the 2.8 intake and retain IAC functionality?" Since I know how the 2.8s system works, but not the 3.1s I thought I might find someone on here who would know the answer.
Instead I got you.
On the LB8, YES, there is a PLASTIC tube from the throttle body (from the IAC housing to be exact) which runs under the upper intake manifold and into a fitting (the same fitting used by the PCV valve) at the rear top of the lower intake manifold. When the IAC valve opens, engine vacuum pulls air through this tube into the intake manifold. The 3.1s use a slightly different IAC setup which eliminates this tube. Perhaps the only difference is the throttle body. I don't know (which is why I asked). Perhaps I should have asked, "is the 3.1s IAC setup compatable with the 2.8?" or "will the 3.1 throttle body work with the 2.8 intake and retain IAC functionality?" Since I know how the 2.8s system works, but not the 3.1s I thought I might find someone on here who would know the answer.
Instead I got you.
![Roll Eyes (Sarcastic)](https://www.thirdgen.org/forums/images/smilies/rolleyes.gif)
#5
I'm tryind to draw myself a mental picture of your throttle body and intake manifold. On mine throttle body, the IAC housing has to vacuum lines leading to the fuel pressure regulator, as well as the vapor canister. Ahead of the throttle body (on the rubber intake tract), there is a plastic line that leads to the valve cover (as you already pointed out, the same type of fitting for the PCV)...
In any event, swapping manifolds wouldn't cause a problem at all... so long as your PCV is still functional. From one of the diagrams that I'm looking at it right now ('89 2.8), there is nothing computer related over by the rear upper side of the lower intake half. So long as it gets plugged, you'll be fine, however, idle might be affected slightly, so it'll need to be reset.
In any event, swapping manifolds wouldn't cause a problem at all... so long as your PCV is still functional. From one of the diagrams that I'm looking at it right now ('89 2.8), there is nothing computer related over by the rear upper side of the lower intake half. So long as it gets plugged, you'll be fine, however, idle might be affected slightly, so it'll need to be reset.
#6
Supreme Member
![](https://www.thirdgen.org/forums/images/ranks/tgo10.gif)
Thread Starter
Join Date: Mar 2001
Location: Renton, WA
Posts: 2,262
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Camaro, 1986 Trans Am
Engine: 5.0L carbed and 5.0L TPI
Transmission: TH700R4
Axle/Gears: 3.23 and 3.27 posi

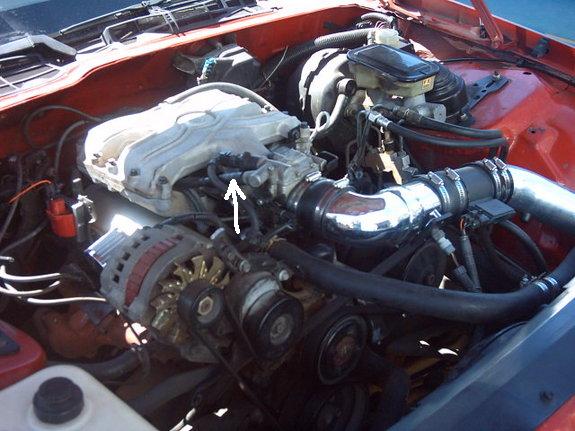

Thanks Street Lethal. Attached is a pic of my intake. The large black plastic tube on the pass side of the TB coming off the IAC housing at about a 35* angle and running under the upper intake is what I am referring to (see arrow). The 3.1s don't have this. But can I just swap the TB as the IAC air bleed is obviously routed differently? Or is the 3.1s manifold a part of that system as well?
