Help Needed!!!! Pics of Chassis Needed urgent
Hey Guys, so I am working on my project '88 IROC-Z, and well I don't have my car close by. I am designing it in 3d studio max, so that I can build the project up and see how it looks before I spend the money and then end up not liking it. I am finishing up the body and am getting ready to start on the mechanical side of things, so what I need is if anyone has pics of their chassis with the frame off, please send me pics.
Here is the project as up to date as it is.
Later
Here is the project as up to date as it is.
Later
08-12-2011, 05:40 PM
#3
Junior Member
Thread Starter
Join Date: Oct 2010
Location: São Paulo, SP, Brasil
Posts: 39
Likes: 0
Received 0 Likes
on
0 Posts
Re: Help Needed!!!! Pics of Chassis Needed urgent
Gotcha, well thats sucks a littel, cause I was trying to do the bottom of the chassis with the motor and tranny mounts, as well as suspension mounting and rear end mounting. I basically need these details so that I can continue the project design, as I am getting to a point where that will be the next step.
08-12-2011, 11:18 PM
#4
Junior Member
Join Date: Oct 2009
Location: New York
Posts: 39
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1983 Recaro T/A / 1988 GTA
Engine: 305ci Crossfire LU5 / 305 TPI LB9
Transmission: 700R4 / T5
Axle/Gears: 10 bolt posi 3.23 /
Re: Help Needed!!!! Pics of Chassis Needed urgent

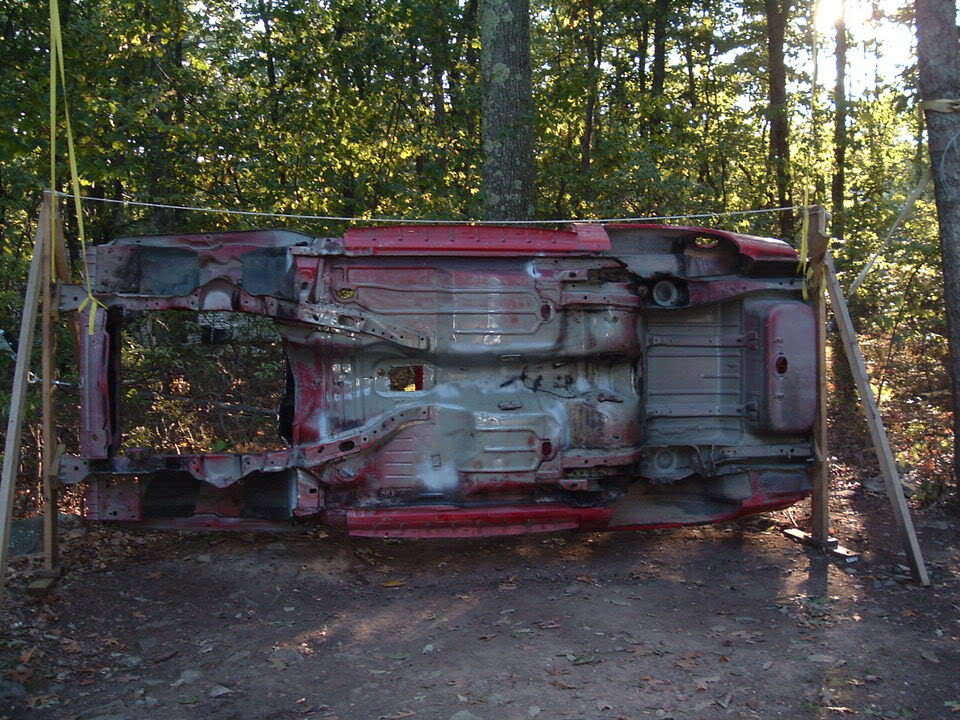

Does this photo help you any?
08-14-2011, 11:54 AM
#6
Senior Member
Join Date: May 2009
Location: Conway SC
Posts: 744
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 Camaro
Engine: 385
Transmission: 700r4
Axle/Gears: 9 bolt
Re: Help Needed!!!! Pics of Chassis Needed urgent
I can send you underbody dimensions from Chief if that will help. PM me with a e-mail addy and I'll send them to you.
08-18-2011, 10:26 PM
#7
Junior Member
Thread Starter
Join Date: Oct 2010
Location: São Paulo, SP, Brasil
Posts: 39
Likes: 0
Received 0 Likes
on
0 Posts
Re: Help Needed!!!! Pics of Chassis Needed urgent
Ok Guys, so this is the most recent of images of the project now. I am now using this post also as a posting for the pics as the project continues onward. It took me awhile but now I have put on the bumper lips and side skirts. Now the next step will be putting in the glass and t-tops, and then I will do the wheels and tires.
Trending Topics
08-20-2011, 12:08 AM
#8
Member
Join Date: May 2008
Location: Planet Oahu Hawaii
Posts: 300
Likes: 0
Received 3 Likes
on
3 Posts
Car: 92 RS
Engine: 94 LT1 383
Transmission: T56-6 Speed
Axle/Gears: posi, 3.26:1,
Re: Help Needed!!!! Pics of Chassis Needed urgent
this was posted somewhere on this sight. I just wish i would have found it before I started my IRS install.
Good luck with you project.
Good luck with you project.
08-20-2011, 08:26 AM
#10
Member
Join Date: Oct 2006
Location: Charlotte NC
Posts: 364
Likes: 0
Received 2 Likes
on
2 Posts
Car: 1991 Camaro RS
Engine: The Wicked six'ah
Transmission: 700r4
Axle/Gears: stock 3.08's
Re: Help Needed!!!! Pics of Chassis Needed urgent
Flydoc: Where did we get that image with the Measurements and such? Looks like it was in a Book. and That outta be saved onto the site as Tech information if you ask me. I have a 88 Camaro SC with 56Kmiles and NO rust. and pushed the Passenger side unibody back 1.5 inches. and with those measurements I could sure Figure out Exactly what and where. Theres a place 3hrs away from me Camaro Heaven that Sells Front clips to the Firewall for $250. and I want to see how they got those Front clips apart. But anyway what other Stuff you got? any Strut Top Measurements?
I'm very interested! Thanks!!
