Radiatior fan wonít turn on when A/C is on

Hi all,

Ií ve this issue when the air conditioning is on: the radiator fan wonít turn on. The mechanic told me the fan must kick in togheter the A/C system in order to cool down the gas inside the pipes. I checked the wiring scheme, and Iím searching for a dark blue wire that should turn the fan on. Where can Ifind that wire? I have a 1990 3.1 V6. Thanks in advance!
Firebird2011 is offline
Old 07-07-2019, 10:01 AM
  #2
Senior Member
iTrader: (4)

punkmaster98's Avatar

Join Date: Aug 2011
Location: Manalapan, NJ
Posts: 870
Likes: 0
Received 0 Likes on 0 Posts
Car: 1984 T/A
Engine: LQ4
Transmission: 4L60e
Axle/Gears: Ford 8.8 3.55 gears
Re: Radiatior fan wonít turn on when A/C is on

Have you checked the wiring for the cooling fan relay to be intact? When my fan switch failed i was able to turn on the AC to get me home. Granted the wiring is unmolested
punkmaster98 is offline
Old 07-08-2019, 03:25 AM
  #3
Junior Member
Thread Starter

Firebird2011's Avatar

Join Date: May 2016
Location: Rome, Italy
Posts: 88
Received 0 Likes on 0 Posts
Car: Pontiac Firebird Formula
Engine: 3.1 LH0
Transmission: 700R4
Axle/Gears: Automatic
Re: Radiatior fan wonít turn on when A/C is on

Hi punkmaster98, I' m going to check it. When I bought the car some years ago, the whole wiring inside the car was terrible. I restored the original wiring and I think I'm done with it, but I' ll check the relay and wiring for sure.

Do you confirm the radiator fan must to be on with the A/C engaged?

Thanks!
Firebird2011 is offline
Old 07-08-2019, 06:26 AM
  #4
Supreme Member
iTrader: (9)

3rdgenmaro's Avatar

Join Date: Dec 2004
Location: Lincolnton, NC
Posts: 1,976
Likes: 0
Received 0 Likes on 0 Posts
Car: 88 IROC
Engine: 97 5.7 Vortec LT4 hotcam
Transmission: 700 r4
Axle/Gears: 3.73
Re: Radiatior fan wonít turn on when A/C is on

Originally Posted by Firebird2011 View Post
Do you confirm the radiator fan must to be on with the A/C engaged?

Thanks!

Yes. The fan must run when the A/C is on.
3rdgenmaro is offline
Old 07-08-2019, 10:47 AM
  #5
Junior Member
Thread Starter

Firebird2011's Avatar

Join Date: May 2016
Location: Rome, Italy
Posts: 88
Received 0 Likes on 0 Posts
Car: Pontiac Firebird Formula
Engine: 3.1 LH0
Transmission: 700R4
Axle/Gears: Automatic
Re: Radiatior fan wonít turn on when A/C is on




Firebird2011 is offline
Old 07-08-2019, 10:48 AM
  #6
Junior Member
Thread Starter

Firebird2011's Avatar

Join Date: May 2016
Location: Rome, Italy
Posts: 88
Received 0 Likes on 0 Posts
Car: Pontiac Firebird Formula
Engine: 3.1 LH0
Transmission: 700R4
Axle/Gears: Automatic
Re: Radiatior fan wonít turn on when A/C is on

Could be this thing related to the fan and A/C?
Firebird2011 is offline
Old 07-09-2019, 11:01 AM
  #7
Senior Member
iTrader: (4)

punkmaster98's Avatar

Join Date: Aug 2011
Location: Manalapan, NJ
Posts: 870
Likes: 0
Received 0 Likes on 0 Posts
Car: 1984 T/A
Engine: LQ4
Transmission: 4L60e
Axle/Gears: Ford 8.8 3.55 gears
Re: Radiatior fan wonít turn on when A/C is on

have you checked the fan relay?
punkmaster98 is offline
Old 07-09-2019, 11:45 AM
  #8
Senior Member

LiquidBlue's Avatar

Join Date: Jun 2015
Location: Austin, TX
Posts: 873
Received 5 Likes on 4 Posts
Car: 90 Formula / T-tops
Engine: 305 TPI
Transmission: 700R4
Re: Radiatior fan wonít turn on when A/C is on

what you have there is connector C105 if I am not mistaken, it is for a 90 305 TPI engine anyway. That connector melts. I don't know why, mine was at an early age. I've heard others report it as well. Here is the diagram of what is in that connector.

Not sure what your connector does, but the diagram below would not prevent fan from coming on unless it is preventing you AC from coming on. EDIT: The reason I say that, is because if the pressure switch is not connected, then I don't think your ac would turn on. but it would be worth checking connectivity on the pressure switch. maybe its intermittent. If you look at the ecm diagram in link below, the pressure switch will prevent fan from turning on, but the diagrams don't clearly state how they are wired (they just are)

EDIT: That may not be a melted C105, it may be special grease used to keep water out.

C105

Last edited by LiquidBlue; 07-16-2019 at 10:19 AM. Reason: clarification on pressure switch
LiquidBlue is offline
The following users liked this post:
Firebird2011 (07-09-2019)
Old 07-09-2019, 11:50 AM
  #9
Senior Member

LiquidBlue's Avatar

Join Date: Jun 2015
Location: Austin, TX
Posts: 873
Received 5 Likes on 4 Posts
Car: 90 Formula / T-tops
Engine: 305 TPI
Transmission: 700R4
Re: Radiatior fan wonít turn on when A/C is on

Find the ECM diagram for your model, and you will find out what turns on the fan. Similar to this. https://www.thirdgen.org/forums/v6/4...ml#post3801073

In this example, it would either be the temp switch or the a/c pressure switch. Or a broken wire, or a bad fan, or relay.
LiquidBlue is offline
Old 07-09-2019, 12:32 PM
  #10
Junior Member
Thread Starter

Firebird2011's Avatar

Join Date: May 2016
Location: Rome, Italy
Posts: 88
Received 0 Likes on 0 Posts
Car: Pontiac Firebird Formula
Engine: 3.1 LH0
Transmission: 700R4
Axle/Gears: Automatic
Re: Radiatior fan wonít turn on when A/C is on

Originally Posted by punkmaster98 View Post
have you checked the fan relay?
Just did, the a/c relay as well. All seems to be ok. But recently I had to re-solder the fan relay wires, the previous owner installed an anti-theft system many years ago. So the wires worn through the years.
Firebird2011 is offline
Old 07-09-2019, 12:37 PM
  #11
Junior Member
Thread Starter

Firebird2011's Avatar

Join Date: May 2016
Location: Rome, Italy
Posts: 88
Received 0 Likes on 0 Posts
Car: Pontiac Firebird Formula
Engine: 3.1 LH0
Transmission: 700R4
Axle/Gears: Automatic
Re: Radiatior fan wonít turn on when A/C is on

Originally Posted by LiquidBlue View Post
Find the ECM diagram for your model, and you will find out what turns on the fan. Similar to this. https://www.thirdgen.org/forums/v6/4...ml#post3801073

In this example, it would either be the temp switch or the a/c pressure switch. Or a broken wire, or a bad fan, or relay.
Great! The situation is more clearer now. Iíll check and Iíll update you guys. Thanks!
Firebird2011 is offline
Old 07-09-2019, 12:43 PM
  #12
Junior Member
Thread Starter

Firebird2011's Avatar

Join Date: May 2016
Location: Rome, Italy
Posts: 88
Received 0 Likes on 0 Posts
Car: Pontiac Firebird Formula
Engine: 3.1 LH0
Transmission: 700R4
Axle/Gears: Automatic
Re: Radiatior fan wonít turn on when A/C is on

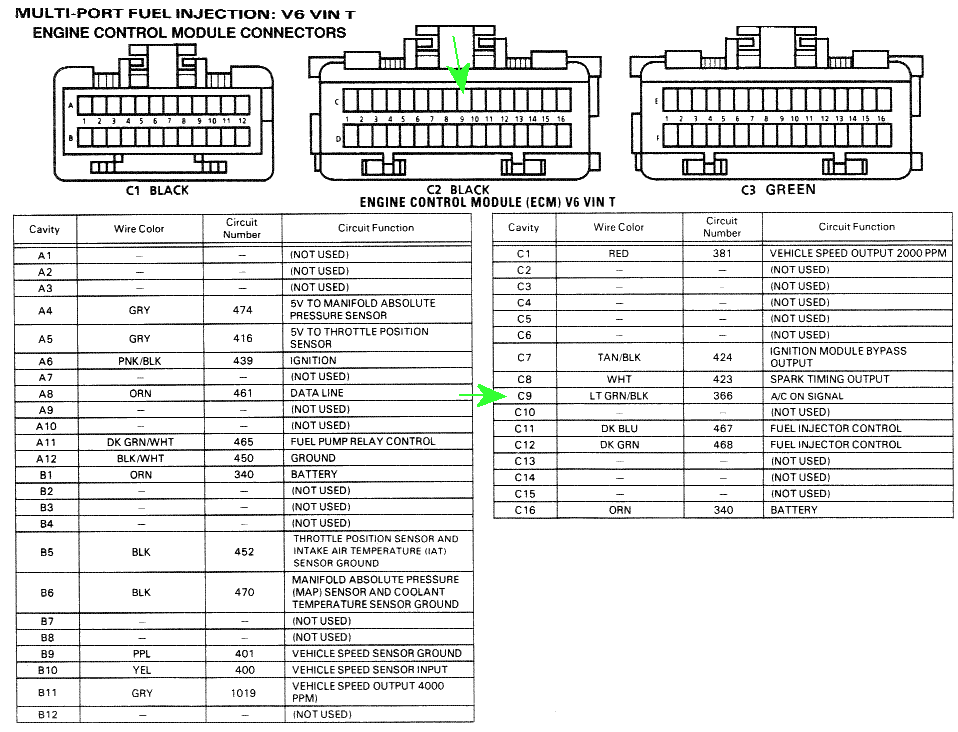

Maybe is this wire? Iíve a 1227730 ECM. Where I can find this gray wire under the hood in order to check continuity?
Firebird2011 is offline
Old 07-09-2019, 12:51 PM
  #13
Senior Member

LiquidBlue's Avatar

Join Date: Jun 2015
Location: Austin, TX
Posts: 873
Received 5 Likes on 4 Posts
Car: 90 Formula / T-tops
Engine: 305 TPI
Transmission: 700R4
Re: Radiatior fan wonít turn on when A/C is on

That is where these wiring diagrams get confusing. See if you can also find the wiring diagrams for the a/c system - that will also assist.

You might give it the old college try and see if there is continuity between the blue wire in C105 and the relay, input F. Or, if you're really brave, bypass F, and apply ground at this input, that would simulate everything needed to turn on the fan. I'd make damn sure you got the correct wiring diagram before proceeding with that. but if you do that, then all you are missing is the ECM to command it to turn on.

edit: IF YOU do try to by-pass F, make sure to take the wire off, otherwise you could damage the ECM

Last edited by LiquidBlue; 07-09-2019 at 12:57 PM. Reason: don't ground the ECM
LiquidBlue is offline
Old 07-09-2019, 12:56 PM
  #14
Senior Member

LiquidBlue's Avatar

Join Date: Jun 2015
Location: Austin, TX
Posts: 873
Received 5 Likes on 4 Posts
Car: 90 Formula / T-tops
Engine: 305 TPI
Transmission: 700R4
Re: Radiatior fan wonít turn on when A/C is on

One other thing that I don't understand, is the ECM (I would guess) is reading these sensors, to determine if the A/C fan should be engaged. so if the sensors are bad, or not connected, you wont get the ECM command to turn on the fan. A data logger may help with this, I'm not sure what data comes thru on these cars.
LiquidBlue is offline
Old 07-10-2019, 02:34 AM
  #15
Junior Member
Thread Starter

Firebird2011's Avatar

Join Date: May 2016
Location: Rome, Italy
Posts: 88
Received 0 Likes on 0 Posts
Car: Pontiac Firebird Formula
Engine: 3.1 LH0
Transmission: 700R4
Axle/Gears: Automatic
Re: Radiatior fan wonít turn on when A/C is on

I just swapped out the old chip with another one, I have the same problem. Now I' m gonna try as you suggested and I' ll tell you asap.

Thanks!
Firebird2011 is offline
Old 07-10-2019, 09:11 AM
  #16
Senior Member

LiquidBlue's Avatar

Join Date: Jun 2015
Location: Austin, TX
Posts: 873
Received 5 Likes on 4 Posts
Car: 90 Formula / T-tops
Engine: 305 TPI
Transmission: 700R4
Re: Radiatior fan wonít turn on when A/C is on

does your car have 2 fans? As far as I know, the 2nd fan should also turn on when water temp gets above a certain temp. easy way to test this is let your car idle while in park until temp climbs to max, you should see the 2nd fan turn on. if it doesn't, then that should help get you closer to identifying the problem.
LiquidBlue is offline
Old 07-10-2019, 09:48 AM
  #17
Junior Member
Thread Starter

Firebird2011's Avatar

Join Date: May 2016
Location: Rome, Italy
Posts: 88
Received 0 Likes on 0 Posts
Car: Pontiac Firebird Formula
Engine: 3.1 LH0
Transmission: 700R4
Axle/Gears: Automatic
Re: Radiatior fan wonít turn on when A/C is on

Single fan
Firebird2011 is offline
Old 07-10-2019, 11:39 AM
  #18
Senior Member

LiquidBlue's Avatar

Join Date: Jun 2015
Location: Austin, TX
Posts: 873
Received 5 Likes on 4 Posts
Car: 90 Formula / T-tops
Engine: 305 TPI
Transmission: 700R4
Re: Radiatior fan wonít turn on when A/C is on

Originally Posted by Firebird2011 View Post
Single fan
Then those example wiring diagrams above are definitely not for your car.
LiquidBlue is offline
Old 07-11-2019, 03:34 AM
  #19
Junior Member
Thread Starter

Firebird2011's Avatar

Join Date: May 2016
Location: Rome, Italy
Posts: 88
Received 0 Likes on 0 Posts
Car: Pontiac Firebird Formula
Engine: 3.1 LH0
Transmission: 700R4
Axle/Gears: Automatic
Re: Radiatior fan wonít turn on when A/C is on

Originally Posted by LiquidBlue View Post
Then those example wiring diagrams above are definitely not for your car.
Thanks anyway, Liquid! made some progresses yesterday. I tested the system under the hood, it seems to work properly. Now I' m checking the HVAC controls, I think that' s something wrong with the slider connections. It' s like it' s always set on heater position, reason why the fan doesn' t start. The electrical system was heavily hijacked by the old owner, I think I' ll find some other surprises around...
About the HVAC, which is the wire behind the slider that selects the A/C and heater?
Firebird2011 is offline
Old 07-11-2019, 08:32 AM
  #20
Senior Member

LiquidBlue's Avatar

Join Date: Jun 2015
Location: Austin, TX
Posts: 873
Received 5 Likes on 4 Posts
Car: 90 Formula / T-tops
Engine: 305 TPI
Transmission: 700R4
Re: Radiatior fan wonít turn on when A/C is on

I know the A/C selection lever turns on the A/C. Not sure if this is vacuum operated or electrical. In 1990, some of the selectors on that control panel are vacuum operated, just don't recall what. Don't know much about the wiring, I'm learning myself right now, but since I'm working in this area of the car I've studied it a bit. I did notice on my setup, it uses the vacuum reserve somehow - may be to keep the vent doors open, don't recall and don't have my book on me. Look into that and make sure your vacuum reserve is connected. If you plan to keep the car, do yourself a favor and get a service manual. There may be a PDF version floating around the 3Gen board somewhere.

sounds like you are on the right track, sounds like the a/c isn't even working. you should hear/see the clutch engage. if not, there are some basic things you can check, like is the a/c clutch signal getting turned on? Same with other switches, are they on? Maybe your refrigerant is low and switches not turning on?
LiquidBlue is offline
Old 07-11-2019, 08:36 AM
  #21
Senior Member

LiquidBlue's Avatar

Join Date: Jun 2015
Location: Austin, TX
Posts: 873
Received 5 Likes on 4 Posts
Car: 90 Formula / T-tops
Engine: 305 TPI
Transmission: 700R4
Re: Radiatior fan wonít turn on when A/C is on

LiquidBlue is offline
Old 07-11-2019, 08:39 AM
  #22
Senior Member

LiquidBlue's Avatar

Join Date: Jun 2015
Location: Austin, TX
Posts: 873
Received 5 Likes on 4 Posts
Car: 90 Formula / T-tops
Engine: 305 TPI
Transmission: 700R4
Re: Radiatior fan wonít turn on when A/C is on

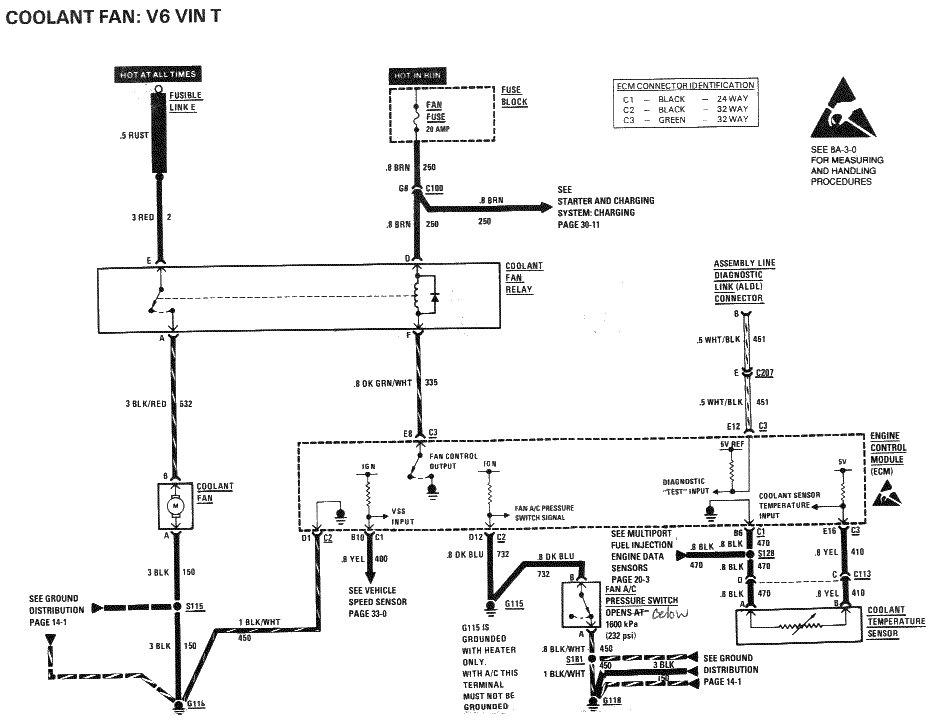

Its hard to find info on 3.1 because so few guys have them. This diagram for 92, Vin F/8. Looks like you could measure at connector C202 to see if it is getting signal. need to find this same diagram for your car.

EDIT: I was off, can't tell where to measure from this diagram. at C105 you could measure to see if there is signal there. Maybe at the presure cycle switch you could measure, its hard for me to read these diagrams, not sure how to read them. they are not traditional electrical engineer schematics that I am used to reading.

Last edited by LiquidBlue; 07-11-2019 at 08:42 AM.
LiquidBlue is offline
Old 07-11-2019, 06:06 PM
  #23
TGO Supporter

deadbird's Avatar

Join Date: Sep 2000
Location: So.west IN
Posts: 6,714
Likes: 0
Received 3 Likes on 3 Posts
Car: 87 Formula/ 00 Xtreme
Engine: TPI 305/ v6
Transmission: struggling t-5/ 4l60E
Axle/Gears: 3.08/ 3.23
Re: Radiatior fan wonít turn on when A/C is on

Originally Posted by Firebird2011 View Post
Iím searching for a dark blue wire that should turn the fan on. Where can Ifind that wire? I have a 1990 3.1 V6. Thanks in advance!

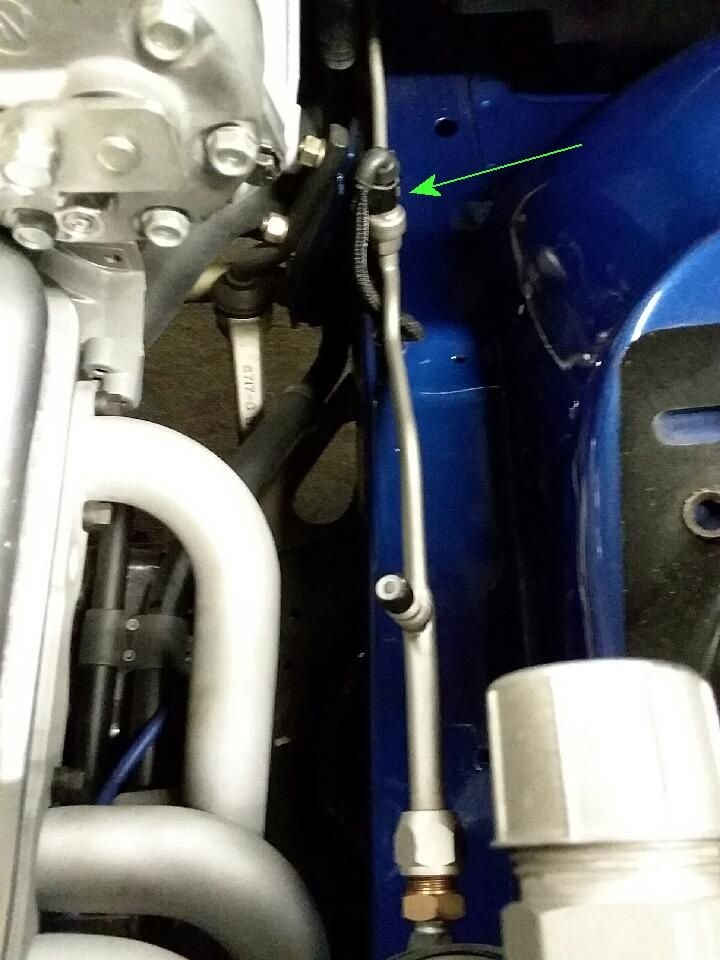

The fan a/c pressure switch in on the refrigerant line. Should be a dark blue and a black/white white on the terminal plug. When the a/c it turned on and the line pressure drops below 232ish psi, this switch opens and commands the ECM to run the fan because the a/c is on. Unplugging this, if everything else is in working order, should make the fan run at all times with the engine running.




deadbird is offline
Old 07-12-2019, 08:30 AM
  #24
Junior Member
Thread Starter

Firebird2011's Avatar

Join Date: May 2016
Location: Rome, Italy
Posts: 88
Received 0 Likes on 0 Posts
Car: Pontiac Firebird Formula
Engine: 3.1 LH0
Transmission: 700R4
Axle/Gears: Automatic
Re: Radiatior fan wonít turn on when A/C is on

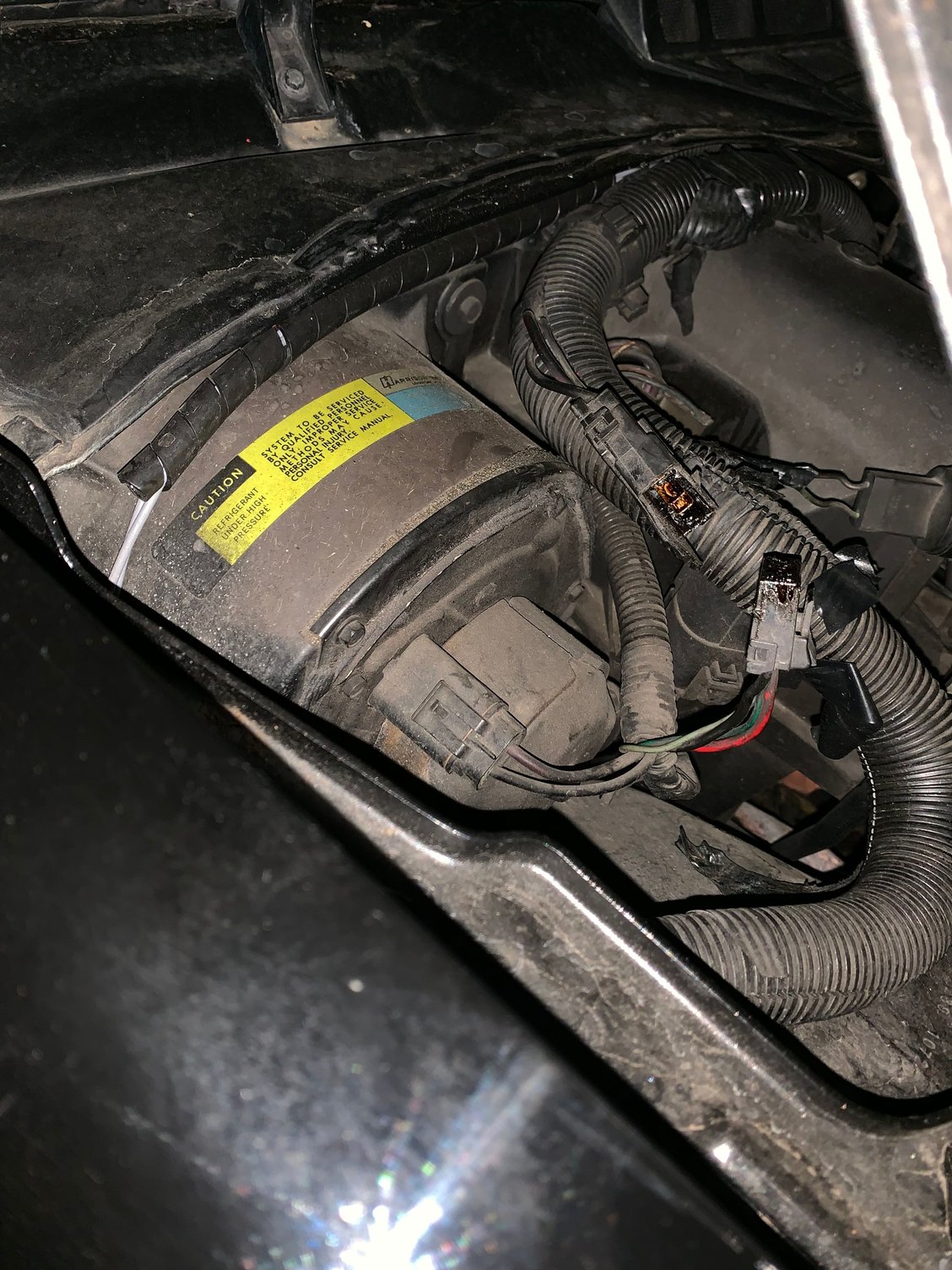

This will be useful for sure! I just tried to unplug the connector and the fan didn't turn on. Maybe a problem on the dark blu wire?

Thanks
Firebird2011 is offline
Old 07-12-2019, 08:43 PM
  #25
TGO Supporter

deadbird's Avatar

Join Date: Sep 2000
Location: So.west IN
Posts: 6,714
Likes: 0
Received 3 Likes on 3 Posts
Car: 87 Formula/ 00 Xtreme
Engine: TPI 305/ v6
Transmission: struggling t-5/ 4l60E
Axle/Gears: 3.08/ 3.23
Re: Radiatior fan wonít turn on when A/C is on

Does the fan come on if you try to retrieve trouble codes ? (It should)

https://www.obd-codes.com/faq/read-g...codes-free.php
deadbird is offline
Old 07-13-2019, 12:33 AM
  #26
Junior Member
Thread Starter

Firebird2011's Avatar

Join Date: May 2016
Location: Rome, Italy
Posts: 88
Received 0 Likes on 0 Posts
Car: Pontiac Firebird Formula
Engine: 3.1 LH0
Transmission: 700R4
Axle/Gears: Automatic
Re: Radiatior fan wonít turn on when A/C is on

Yes, it does
Firebird2011 is offline
Old 07-13-2019, 04:41 AM
  #27
Member

Join Date: Jan 2005
Location: N. CA
Posts: 414
Likes: 0
Received 3 Likes on 3 Posts
Car: 1989 IROC-Z 305 LB9 AT Convertible
Engine: LB9 305
Transmission: AT
Re: Radiatior fan wonít turn on when A/C is on

Listening in.
mikeceli is offline
Old 07-15-2019, 04:42 PM
  #28
TGO Supporter

deadbird's Avatar

Join Date: Sep 2000
Location: So.west IN
Posts: 6,714
Likes: 0
Received 3 Likes on 3 Posts
Car: 87 Formula/ 00 Xtreme
Engine: TPI 305/ v6
Transmission: struggling t-5/ 4l60E
Axle/Gears: 3.08/ 3.23
Re: Radiatior fan wonít turn on when A/C is on

Granted, you're running a newer ECM than my 87 but, the v6 still operates very similar to the '87 TPI (electrically).. so, unplugging that FP switch may need to combine with another input. My 87, that blue wire not grounded (or plugged in) will cause my primary fan to run at key on and run, too.

So that shows the ECM is still able to control the fan relay (function as it should) and that the fan circuit is working back to the ECM. The only other electrical thing I can see is you may not be getting 12v power from the lt green/blk wire on the high pressure cutoff (back of compressor) to the ECM.


deadbird is offline
Old 07-16-2019, 04:50 AM
  #29
Junior Member
Thread Starter

Firebird2011's Avatar

Join Date: May 2016
Location: Rome, Italy
Posts: 88
Received 0 Likes on 0 Posts
Car: Pontiac Firebird Formula
Engine: 3.1 LH0
Transmission: 700R4
Axle/Gears: Automatic
Re: Radiatior fan wonít turn on when A/C is on

Thanks deadbird! I' ll check this thing also, I think there' s a huge hijacking work under the hood. Wish me luck!
Firebird2011 is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Fronzizzle
Electronics
4
07-20-2017 02:18 PM
Boomstick
Engine/Drivetrain/Suspension Wanted
1
07-28-2016 11:50 AM
First-Timer
Miscellaneous Third Gen Items!
2
12-11-2008 09:40 PM
monte-ss
Power Adders
4
05-16-2001 12:24 AM
gwman
Aftermarket Product Review
17
05-04-2001 12:07 PM


Thread Tools
Search this Thread
Quick Reply: Radiatior fan wonít turn on when A/C is on


Contact Us - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
