high pressure cutout switch on compressor
#1
Supreme Member
Thread Starter
Join Date: Jun 2015
Location: Austin, TX
Posts: 1,907
Received 176 Likes
on
135 Posts
Car: 90 Formula / T-tops
Engine: 305 TPI
Transmission: MD8
high pressure cutout switch on compressor
hey guys, i’m stuck. new compressor has hole for one, but i’m not finding a part number for this switch/ sensor, what ever it is. also, the switch wiring is not covered in the service manual. only one in service manual is the one mounted on accumulator
what gives? no part number, not in manual?
the connect is mentioned, but does not indicate where wiring should go as if it does not really exist. yet there is one on my old compressor. don’t really want to leave a connector hanging and don’t really want to use old sensor
what gives? no part number, not in manual?
the connect is mentioned, but does not indicate where wiring should go as if it does not really exist. yet there is one on my old compressor. don’t really want to leave a connector hanging and don’t really want to use old sensor
#4
Supreme Member
iTrader: (1)
Re: high pressure cutout switch on compressor
At rock auto , don't look in the specific air conditioning subsection , look at the "Electrical , switch and relay" subsection at the four seasons compressor mounted high pressure switch , part number 35974 , and see if that will work for you .
PS , interesting change , my 1989 has the high pressure switch in the metal line leading from the condenser to the evaporator .
PS , interesting change , my 1989 has the high pressure switch in the metal line leading from the condenser to the evaporator .
#7
Member
iTrader: (1)
Re: high pressure cutout switch on compressor
At rock auto , don't look in the specific air conditioning subsection , look at the "Electrical , switch and relay" subsection at the four seasons compressor mounted high pressure switch , part number 35974 , and see if that will work for you .
PS , interesting change , my 1989 has the high pressure switch in the metal line leading from the condenser to the evaporator .
PS , interesting change , my 1989 has the high pressure switch in the metal line leading from the condenser to the evaporator .
Trending Topics
#8
Supreme Member
iTrader: (1)
Re: high pressure cutout switch on compressor
At rock auto , don't look in the specific air conditioning subsection , look at the "Electrical , switch and relay" subsection at the four seasons compressor mounted high pressure switch , part number 35974 , and see if that will work for you .
PS , interesting change , my 1989 has the high pressure switch in the metal line leading from the condenser to the evaporator .
PS , interesting change , my 1989 has the high pressure switch in the metal line leading from the condenser to the evaporator .
No change... You have a high pressure switch in the metal line from condenser to evap, the low pressure switch in the dryer and the cutoff switch in the compressor head. The cutoff switch is just a safety feature to save the compressor in case of extremely high pressure buildup.
#9
Supreme Member
Thread Starter
Join Date: Jun 2015
Location: Austin, TX
Posts: 1,907
Received 176 Likes
on
135 Posts
Car: 90 Formula / T-tops
Engine: 305 TPI
Transmission: MD8
Re: high pressure cutout switch on compressor
Denton is describing what I have in my setup - 1990. If you look at my compressor, it has 1989 stamped on it. The configurations vary over the years. Thanks for help last night, I was stuck in my garage where wifi is on/off and makes it hard to browse quickly for stuff.
#10
Supreme Member
Thread Starter
Join Date: Jun 2015
Location: Austin, TX
Posts: 1,907
Received 176 Likes
on
135 Posts
Car: 90 Formula / T-tops
Engine: 305 TPI
Transmission: MD8
Re: high pressure cutout switch on compressor
Yes J.C. , it most certainly is a change ! For the manufacturer to relocate the high pressure cutout switch from the liquid line to the back of the compressor constitutes a change in both the compressor AND the liquid line , parts buying wise , which is exactly what Liquid Blue and I were discussing . No change in circuit function , but BIG change when ordering parts .
#11
Supreme Member
Thread Starter
Join Date: Jun 2015
Location: Austin, TX
Posts: 1,907
Received 176 Likes
on
135 Posts
Car: 90 Formula / T-tops
Engine: 305 TPI
Transmission: MD8
Re: high pressure cutout switch on compressor

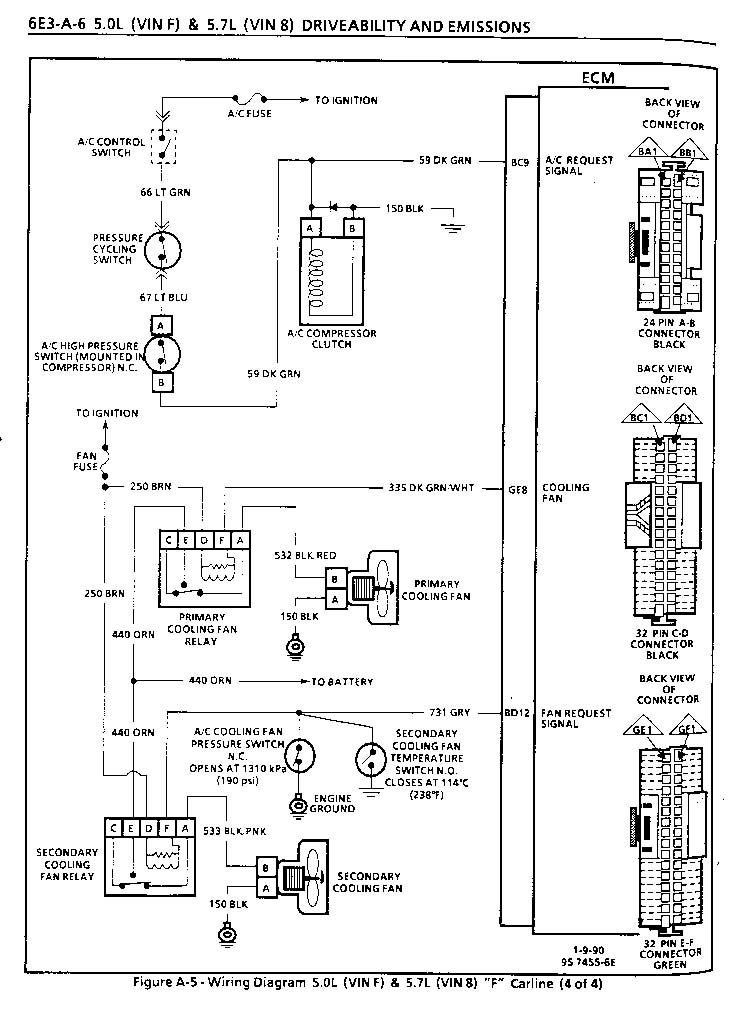

Think I just ran across the wiring diagram. Didn't see this last night. These are the worst wiring diagrams ever! Where is connector 105 in this??? It should be included in this diagram, instead, you have to either have 4 books spread out to different pages or turn pages back and forth. I find myself putting bolts as book marks when micky mousing around with these wiring diagrams.
Last edited by LiquidBlue; 07-09-2019 at 09:20 AM.
#12
Supreme Member
iTrader: (58)
Re: high pressure cutout switch on compressor
Without digging out the book and looking at a diagram, I want to say it's a redundant switch in addition to the one on the pressure line.
Nothing wrong with those diagrams. They're intended to show the entire system, if you want all the connectors, splices, etc shown you need to look in the wiring diagrams instead of the troubleshooting diagrams. It's all about learning how to use the book.
The worst diagrams ever are the early line diagrams printed on a tri or quad-fold inserts at the back of the books. GM diagrams got vastly better in the mid 80s.
Nothing wrong with those diagrams. They're intended to show the entire system, if you want all the connectors, splices, etc shown you need to look in the wiring diagrams instead of the troubleshooting diagrams. It's all about learning how to use the book.
The worst diagrams ever are the early line diagrams printed on a tri or quad-fold inserts at the back of the books. GM diagrams got vastly better in the mid 80s.
