Aluminum fan shroud question
#1
Supreme Member
Thread Starter
iTrader: (1)
Join Date: Dec 2000
Location: Cincinnati,Ohio
Posts: 2,341
Received 151 Likes
on
111 Posts
Car: 1991 BandittII Firebird
Engine: 5.7 HSR
Transmission: 700R4
Axle/Gears: 3.27 9 bolt
Aluminum fan shroud question
I'm revamping some of my cooling system, ditching the single factory with a higher CFM single 16" flex-a-lite fan mounted to an aluminum fan shroud, both the radiator and shroud are from Champion. Champion doesn't offer a single fan shroud any more for the 82-92 f-body radiators and they just so happen to have one single 16" radiator left so when ordering they didn't have any pictures on their website. The shroud that was delivered has 4 louvers, one in each corner, I was not expecting this and I was planning on adding the rubber flappers in each corner.
On to my question....would there be any benefit to cutting the holes and adding the four flappers even thought the shroud has the four louvers?
Am I better off to run this with just the louvers?
Add the flappers with the louvers?
flatten out the louvers weld the seams closed and run just the flappers?
Flappers

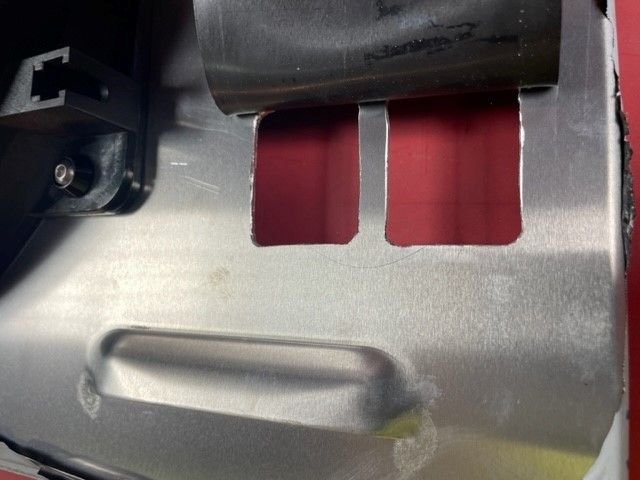

This is not the shroud that I have but it's similar, the shroud I have has only one louver in each corner.
Champion radiator shroud
On to my question....would there be any benefit to cutting the holes and adding the four flappers even thought the shroud has the four louvers?
Am I better off to run this with just the louvers?
Add the flappers with the louvers?
flatten out the louvers weld the seams closed and run just the flappers?
Flappers
This is not the shroud that I have but it's similar, the shroud I have has only one louver in each corner.
Champion radiator shroud
#2
Supreme Member
iTrader: (9)
Re: Aluminum fan shroud question
I would prefer the flappers as they should close when your car is not in motion and open at speed. At least that how i think they work. The louvers might be a compromise of the two (open/closed)
I made my own shroud out of aluminum sheet w/ two spring loaded trap doors. Mounted to the upper/lower OE shrouds and a spal fan modified to fit in the OE fan brace. Works quite well.
I made my own shroud out of aluminum sheet w/ two spring loaded trap doors. Mounted to the upper/lower OE shrouds and a spal fan modified to fit in the OE fan brace. Works quite well.
The following 2 users liked this post by 84 1LE:
91banditt2 (05-20-2023), NoEmissions84TA (05-26-2023)
#3
Supreme Member
Thread Starter
iTrader: (1)
Join Date: Dec 2000
Location: Cincinnati,Ohio
Posts: 2,341
Received 151 Likes
on
111 Posts
Car: 1991 BandittII Firebird
Engine: 5.7 HSR
Transmission: 700R4
Axle/Gears: 3.27 9 bolt
Re: Aluminum fan shroud question
I would prefer the flappers as they should close when your car is not in motion and open at speed. At least that how i think they work. The louvers might be a compromise of the two (open/closed)
I made my own shroud out of aluminum sheet w/ two spring loaded trap doors. Mounted to the upper/lower OE shrouds and a spal fan modified to fit in the OE fan brace. Works quite well.
I made my own shroud out of aluminum sheet w/ two spring loaded trap doors. Mounted to the upper/lower OE shrouds and a spal fan modified to fit in the OE fan brace. Works quite well.
I decided to add the flappers, figured more air flow can't be a bad thing, once I get the fan shroud modified, I'll post some pictures.
The following users liked this post:
91banditt2 (05-25-2023)
#5
Supreme Member
Thread Starter
iTrader: (1)
Join Date: Dec 2000
Location: Cincinnati,Ohio
Posts: 2,341
Received 151 Likes
on
111 Posts
Car: 1991 BandittII Firebird
Engine: 5.7 HSR
Transmission: 700R4
Axle/Gears: 3.27 9 bolt
Re: Aluminum fan shroud question
Here's what I've got so far, this weekend I'll get started on removing the radiator to install rivnuts to mount the fan shroud.

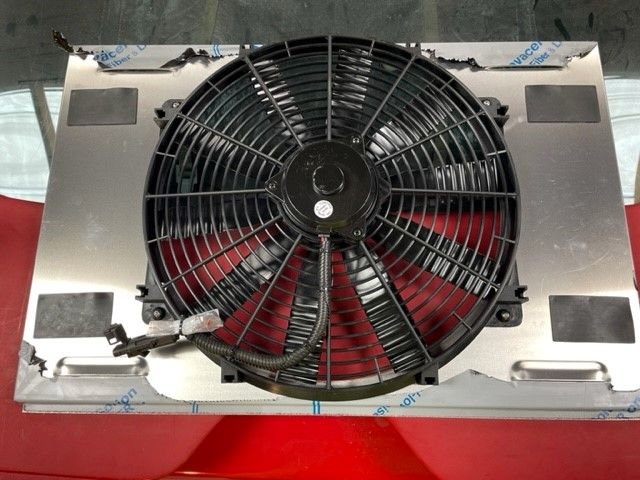

flaps and 16" Flex-a-lite fan

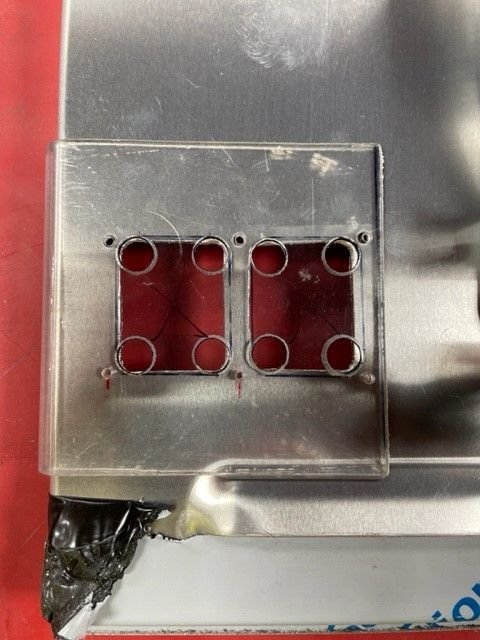

Lexan template to consistently locate pattern on the aluminum panel to be drilled then cut on all four corners
