No Starter After Replacing Postive Battery Cable
#1
Member
Thread Starter
iTrader: (1)
Join Date: Nov 2013
Location: Cincinnati, OH
Posts: 112
Likes: 0
Received 5 Likes
on
3 Posts
Car: 2002 Camaro SS
Engine: Built LS
Transmission: T56
Axle/Gears: 3.73
No Starter After Replacing Postive Battery Cable
1991 Formula 5.0 TPI 5-spd
The car started fine until I removed the positive battery cable.
There are 3 orange wires, 2 of which use the same connector and 1 which is solo.
The positive battery cable ends have 2 tabs that point down. One is straight the other has a odd curve. I assume this has to go on a certain way for a good connection? I have the tabs facing the starter but I think it's supposed to seat different.
It's a stock cable so I have one wire going to the back of the initiator and plugged in the wire connector.
I took it off a few months ago and tried to install again today but I think I"m doing something wrong. All the lights work etc. just no starter. I attached a picture to help.
The car started fine until I removed the positive battery cable.
There are 3 orange wires, 2 of which use the same connector and 1 which is solo.
The positive battery cable ends have 2 tabs that point down. One is straight the other has a odd curve. I assume this has to go on a certain way for a good connection? I have the tabs facing the starter but I think it's supposed to seat different.
It's a stock cable so I have one wire going to the back of the initiator and plugged in the wire connector.
I took it off a few months ago and tried to install again today but I think I"m doing something wrong. All the lights work etc. just no starter. I attached a picture to help.
Last edited by Necron; 03-11-2016 at 05:18 PM.
#2
Senior Member
iTrader: (8)
Join Date: Aug 2011
Location: Texas
Posts: 661
Likes: 0
Received 7 Likes
on
7 Posts
Car: 91 Firebird/88 Firebird/91 Formula
Engine: V6 3.1/V8 5.0/V8 5.0
Transmission: 4L60/700R4/4L60
Axle/Gears: 3.23/2.73/2.73
Re: No Starter After Replacing Postive Battery Cable
Where is the purple wire connected to?
#3
Member
Thread Starter
iTrader: (1)
Join Date: Nov 2013
Location: Cincinnati, OH
Posts: 112
Likes: 0
Received 5 Likes
on
3 Posts
Car: 2002 Camaro SS
Engine: Built LS
Transmission: T56
Axle/Gears: 3.73
Re: No Starter After Replacing Postive Battery Cable
The S terminal(think that's the name) I never removed the purple wire though.
#4
Senior Member
iTrader: (8)
Join Date: Aug 2011
Location: Texas
Posts: 661
Likes: 0
Received 7 Likes
on
7 Posts
Car: 91 Firebird/88 Firebird/91 Formula
Engine: V6 3.1/V8 5.0/V8 5.0
Transmission: 4L60/700R4/4L60
Axle/Gears: 3.23/2.73/2.73
Re: No Starter After Replacing Postive Battery Cable
And you have all three fusible links along with the positive at the "B" terminal?
#5
Senior Member
iTrader: (8)
Join Date: Aug 2011
Location: Texas
Posts: 661
Likes: 0
Received 7 Likes
on
7 Posts
Car: 91 Firebird/88 Firebird/91 Formula
Engine: V6 3.1/V8 5.0/V8 5.0
Transmission: 4L60/700R4/4L60
Axle/Gears: 3.23/2.73/2.73
Re: No Starter After Replacing Postive Battery Cable

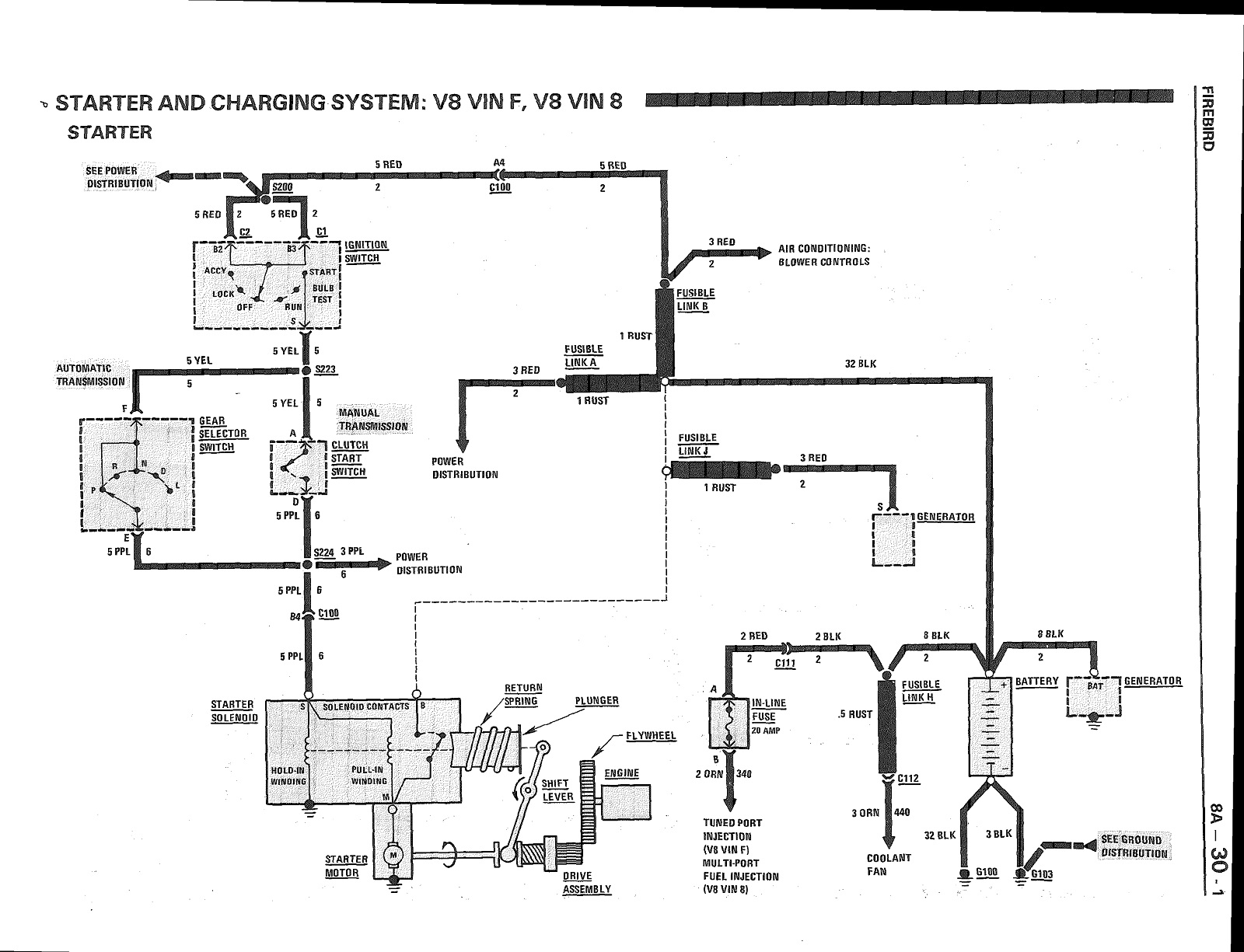

If so, here's a typical wiring diagram for your setup. If you're getting power through everything else, check your purple wire continuity through your clutch start switch.
#6
Member
Thread Starter
iTrader: (1)
Join Date: Nov 2013
Location: Cincinnati, OH
Posts: 112
Likes: 0
Received 5 Likes
on
3 Posts
Car: 2002 Camaro SS
Engine: Built LS
Transmission: T56
Axle/Gears: 3.73
Re: No Starter After Replacing Postive Battery Cable
There are 3 wires(red) that connect with 2 different ring connectors. I assume those are the 3 fusible links?
What's the best way to tell if I have power at the starter? Can I just test with the car in run?
What's the best way to tell if I have power at the starter? Can I just test with the car in run?
#7
Senior Member
iTrader: (8)
Join Date: Aug 2011
Location: Texas
Posts: 661
Likes: 0
Received 7 Likes
on
7 Posts
Car: 91 Firebird/88 Firebird/91 Formula
Engine: V6 3.1/V8 5.0/V8 5.0
Transmission: 4L60/700R4/4L60
Axle/Gears: 3.23/2.73/2.73
Re: No Starter After Replacing Postive Battery Cable
If you look at fusible link A it goes to power distribution. If you gave power in the car, you should have power at the starter. You can check with a voltmeter by checking between terminal "b" and a ground you should have 12 volts.
