LSX Engine Mount Suggestion
Am going to use this K-Member setup for my build:http://umiperformance.com/catalog/in...roducts_id=733
Based on the type of K-member mount that this kit comes with what would be the best type and brand of engine mount that bolts to the sides of the engine? Looking for strength and durability.
Based on the type of K-member mount that this kit comes with what would be the best type and brand of engine mount that bolts to the sides of the engine? Looking for strength and durability.
#2
COTM Editor
iTrader: (22)
Join Date: Mar 2001
Posts: 9,907
Likes: 0
Received 1,856 Likes
on
1,271 Posts
Car: '89 Firebird
Engine: 7.0L
Transmission: T56
Re: LSX Engine Mount Suggestion
I think UMI sells solid steel and aluminum mounts. I have the solid aluminum LS engine mounts and you'd never know from the driver seat. I use rubber transmission mount, and I think that is key to keeping the vibration in check.
I've noticed that UMI does not understand bolted joints with many of their product designs. I threw away the split washers, and installed some structural hardened washers, and did not follow their tightening torques.
If I did it again I'd probably go with a steel mount. I think these aluminum mounts are too soft, but time will tell.
I've noticed that UMI does not understand bolted joints with many of their product designs. I threw away the split washers, and installed some structural hardened washers, and did not follow their tightening torques.
If I did it again I'd probably go with a steel mount. I think these aluminum mounts are too soft, but time will tell.
Last edited by QwkTrip; 09-29-2019 at 04:20 PM.
#4
COTM Editor
iTrader: (22)
Join Date: Mar 2001
Posts: 9,907
Likes: 0
Received 1,856 Likes
on
1,271 Posts
Car: '89 Firebird
Engine: 7.0L
Transmission: T56
#5
Supreme Member
Thread Starter
iTrader: (13)
Join Date: Sep 2005
Location: Bellville,Texas
Posts: 1,245
Likes: 0
Received 26 Likes
on
22 Posts
Car: 1985 Iroc-Z
Engine: 440LSX
Transmission: l460e
Axle/Gears: 3.55 Wavetrac
Re: LSX Engine Mount Suggestion
Was looking in the wrong place on UMI's website. Thanks.
#6
Supreme Member
Thread Starter
iTrader: (13)
Join Date: Sep 2005
Location: Bellville,Texas
Posts: 1,245
Likes: 0
Received 26 Likes
on
22 Posts
Car: 1985 Iroc-Z
Engine: 440LSX
Transmission: l460e
Axle/Gears: 3.55 Wavetrac
Re: LSX Engine Mount Suggestion
Last question. Did you have to use an adaptor plate such as the one in the pic to get proper placement of engine?
#7
COTM Editor
iTrader: (22)
Join Date: Mar 2001
Posts: 9,907
Likes: 0
Received 1,856 Likes
on
1,271 Posts
Car: '89 Firebird
Engine: 7.0L
Transmission: T56
Re: LSX Engine Mount Suggestion
I have a BMR k member. It's made for an LS engine to just bolt in and there are no adjustments. I used to have standard LS1 f body rubber mounts. I replaced those with the UMI f body solid mounts.
Talk to ShiftyCapone. I think he wrestled with what combination of parts go with the UMI kit.
Talk to ShiftyCapone. I think he wrestled with what combination of parts go with the UMI kit.
Trending Topics
#9
Supporter/Moderator
iTrader: (7)
Join Date: Feb 2001
Location: Cincinnati, OH
Posts: 13,214
Likes: 0
Received 375 Likes
on
288 Posts
Car: '90 RS
Engine: 377 LSX
Transmission: Magnum T56
Re: LSX Engine Mount Suggestion
QWK is correct. I am running the road race k-member, with their LS specific brackets (not the brackets for an LS swap with the stock k-member). I am also using the aluminum engine mounts as well. Everything bolted up nicely but I am not thrilled about the clearance between the oil pan and the k-member. I'd like a little more clearance in there. If you do go this route, I suggest getting one of the Holley pans that has more front sump clearance. I also wish the mounts used three bolts rather than four. The fourth bolt over constrains the system and limits adjustment. Less adjustment is ok with a different pan.
K-Member (Road Race) - 2407
A-Arms (Poly Bushings) - 2031
A-Arm Hardware - 3011
98-02 LS1 Fbody UMI Performance Solid Aluminum Motor Mounts - 2332
1982-1992 GM F-Body LSX Motor Mounts, Only for use with UMI K-members - 2409
Do not use UMI 2406 brackets with a UMI K-Member. These brackets work with the stock K-member only.
K-Member (Road Race) - 2407
A-Arms (Poly Bushings) - 2031
A-Arm Hardware - 3011
98-02 LS1 Fbody UMI Performance Solid Aluminum Motor Mounts - 2332
1982-1992 GM F-Body LSX Motor Mounts, Only for use with UMI K-members - 2409
Do not use UMI 2406 brackets with a UMI K-Member. These brackets work with the stock K-member only.
#10
Supreme Member
Thread Starter
iTrader: (13)
Join Date: Sep 2005
Location: Bellville,Texas
Posts: 1,245
Likes: 0
Received 26 Likes
on
22 Posts
Car: 1985 Iroc-Z
Engine: 440LSX
Transmission: l460e
Axle/Gears: 3.55 Wavetrac
Re: LSX Engine Mount Suggestion
I’m using standard UMI tube K member. Will mock up on engine before install. Any pics of your oil pan issues? Thanks for the info.
#13
Supreme Member
Thread Starter
iTrader: (13)
Join Date: Sep 2005
Location: Bellville,Texas
Posts: 1,245
Likes: 0
Received 26 Likes
on
22 Posts
Car: 1985 Iroc-Z
Engine: 440LSX
Transmission: l460e
Axle/Gears: 3.55 Wavetrac
Re: LSX Engine Mount Suggestion
Dang that’s close. I have the F- body pan on my engine.
#14
Supporter/Moderator
iTrader: (7)
Join Date: Feb 2001
Location: Cincinnati, OH
Posts: 13,214
Likes: 0
Received 375 Likes
on
288 Posts
Car: '90 RS
Engine: 377 LSX
Transmission: Magnum T56
Re: LSX Engine Mount Suggestion
If I were you, and you didnt have money tied up in improved racing baffles and crank scrapers, I'd sell the f-body pan and buy the Holley set up. Improved racing makes a crank scraper and windage baffle for their 301 or 302 pans.
#15
Supporter/Moderator
iTrader: (7)
Join Date: Feb 2001
Location: Cincinnati, OH
Posts: 13,214
Likes: 0
Received 375 Likes
on
288 Posts
Car: '90 RS
Engine: 377 LSX
Transmission: Magnum T56
Re: LSX Engine Mount Suggestion

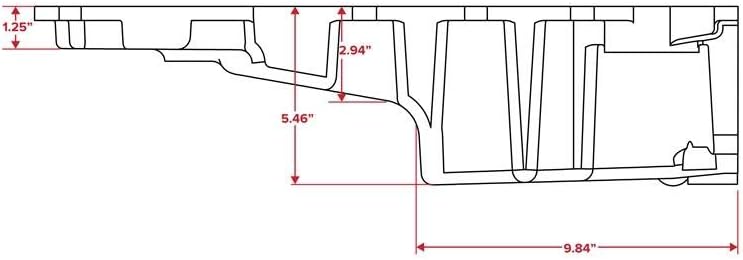

Stock pan is 11.71" from the rear edge to the main wall of the sump. The holley 302-1 is 7.4 ish. I think either pan would work. I have plenty of room above the kmember.
F body pan
F body pan
#16
Supreme Member
Thread Starter
iTrader: (13)
Join Date: Sep 2005
Location: Bellville,Texas
Posts: 1,245
Likes: 0
Received 26 Likes
on
22 Posts
Car: 1985 Iroc-Z
Engine: 440LSX
Transmission: l460e
Axle/Gears: 3.55 Wavetrac
Re: LSX Engine Mount Suggestion
Getting the car back from paint in about 2 weeks. I’ll mock everything up and see how the current pan fits. If too close I’ll go with the Holly. Thanks for the specs and pics.
#17
COTM Editor
iTrader: (22)
Join Date: Mar 2001
Posts: 9,907
Likes: 0
Received 1,856 Likes
on
1,271 Posts
Car: '89 Firebird
Engine: 7.0L
Transmission: T56
Re: LSX Engine Mount Suggestion
I abandoned the f body pan with the LS7. More info here in post #936, with dimensions of most cast oil pans. I have gobs of room with the BMR k-member though.
https://www.thirdgen.org/forums/ltx-...ml#post6193942
One thing I want to say is the Holley pan setup was a bunch of misfit parts and a really bad product. Fortunately I bought it all from Improved Racing who has an inside line with Holley. It required redesign of multiple parts, sending parts back and forth, and much patience on my side. Anybody would now get the redesigned stuff patterned after mine, so hopefully no more issues.
https://www.thirdgen.org/forums/ltx-...ml#post6193942
One thing I want to say is the Holley pan setup was a bunch of misfit parts and a really bad product. Fortunately I bought it all from Improved Racing who has an inside line with Holley. It required redesign of multiple parts, sending parts back and forth, and much patience on my side. Anybody would now get the redesigned stuff patterned after mine, so hopefully no more issues.
Last edited by QwkTrip; 09-30-2019 at 11:55 PM.
#18
Supporter/Moderator
iTrader: (7)
Join Date: Feb 2001
Location: Cincinnati, OH
Posts: 13,214
Likes: 0
Received 375 Likes
on
288 Posts
Car: '90 RS
Engine: 377 LSX
Transmission: Magnum T56
Re: LSX Engine Mount Suggestion
One thing I want to say is the Holley pan setup was a bunch of misfit parts and a really bad product. Fortunately I bought it all from Improved Racing who has an inside line with Holley. It required redesign of multiple parts, sending parts back and forth, and much patience on my side. Anybody would now get the redesigned stuff patterned after mine, so hopefully no more issues.
#19
COTM Editor
Re: LSX Engine Mount Suggestion
i have been using the UMI road race k-member in a number of my swaps.. you can see in around post 9 and10 of my son's formula LS3 swap what we recently did. for motor mounts we used standard OEM shells with prothane inserts
https://www.thirdgen.org/forums/ltx-...-ls3-swap.html
we modified the UMI k member mounts to allow better positioning and allowed then use of the holley trans cross member
https://www.thirdgen.org/forums/ltx-...-ls3-swap.html
we modified the UMI k member mounts to allow better positioning and allowed then use of the holley trans cross member
#20
Supreme Member
iTrader: (15)
Re: LSX Engine Mount Suggestion
Man that’s close! 1/4” is def enough with solid mounts but that’s not leaving a lot of room to move the motor in and drop it down or if you wanted to adjust it forward for whatever reason. I have a stupid amount of room with my race craft moly kmember I could prob drop the pan without removing it or raising it.
#21
Junior Member
Re: LSX Engine Mount Suggestion
I saw this on a FaceBook group yesterday, seems like a good alternative, anybody try it?
TSP 81073
TSP 81073
#22
Supreme Member
Thread Starter
iTrader: (13)
Join Date: Sep 2005
Location: Bellville,Texas
Posts: 1,245
Likes: 0
Received 26 Likes
on
22 Posts
Car: 1985 Iroc-Z
Engine: 440LSX
Transmission: l460e
Axle/Gears: 3.55 Wavetrac
Re: LSX Engine Mount Suggestion
Bought the ICT Billet mounts. Hopefully it will work well with the UMI K-member. Car almost finished with paint. Ready to get started.
#23
Re: LSX Engine Mount Suggestion
I saw this on a FaceBook group yesterday, seems like a good alternative, anybody try it?
TSP 81073
https://www.amazon.com/dp/B07RLVHZMG...R9ruv3-ZLX1abY
TSP 81073
https://www.amazon.com/dp/B07RLVHZMG...R9ruv3-ZLX1abY
