Im looking to mount a A/W under the dash. Does anyone have pictures of how they mounted theirs? What size was used. My car is not easy to get to right now or I'd measure myself but I'd like to order one so it's here when the car gets here.

Thanks

anesthes

iTrader: (12)

That is not the place I'd mount it. One of the things I like about an A/W is reducing the length and number of bends in the piping. Without knowing anything else about your combo, I'd try to locate it over the battery or in a similar location.

-- Joe

RoadHammer

Depends on the physical size of the intercooler. If it's one of those 3 or 4000hp rated behemoths, good luck trying to find space underhood.

BBCpoweredZ28

iTrader: (3)

I'd like to keep the underhood uncluttered while not putting it in the interior as I still drive the car. Looking to support about 1500HP

BBCpoweredZ28

iTrader: (3)

Anybody have anything?

TwinTurboROC

That kinda HP lvl for a A/W-L pushes the size WAY up than what the stock dash can fit. Your gonna have some of it sticking below the lower hush panel.

Sorry no pics of a thirdgen but here are some examples from yellow just so you get the idea what your dealing with.
http://www.yellowbullet.com/forum/sh...d.php?t=344303

BBCpoweredZ28

iTrader: (3)

I'm fine with it showing a little under the dash. Just didnt rely wanna put it in plain sight lol.

superirocz

iTrader: (5)

I shoud have mine in about a week. Mounting were the rad would go and putting full size radiator in front of hood latch and 2000HP L/A cooler from chielsed. Check out my wicked Z post on this page.

BBCpoweredZ28

iTrader: (3)

Just checked out your page. Looks great. I would need a straight thru cooler as I'm running twin S480s in the fog light openings with a return pump.

Blow the compressed air toward the center of the car and up into the cooler thru to the intake.

daverr

iTrader: (1)

Here is where my a/w intercooler good for 3000hp is located.

BBCpoweredZ28

iTrader: (3)

Got any pics of how you chopped the front "frame rails" and core support area. That's my next step and not sure exactly where to start.

daverr

iTrader: (1)

I hope this pic helps

BBCpoweredZ28

iTrader: (3)

Awesome. Hot any looking down from where the a/w is? Not sure how far back I can cut the frame.

Twin_Turbo

iTrader: (25)

Some more pics of those exhaust ends pease...that's just what I need for my camaro to clear the rest of the junk I have under there LOL AWESOME system!!

Looks like the ends are aluminum??

daverr

iTrader: (1)

The a/w intercooler installed without modifying the frame .The only frame cutting was for the downpipes.

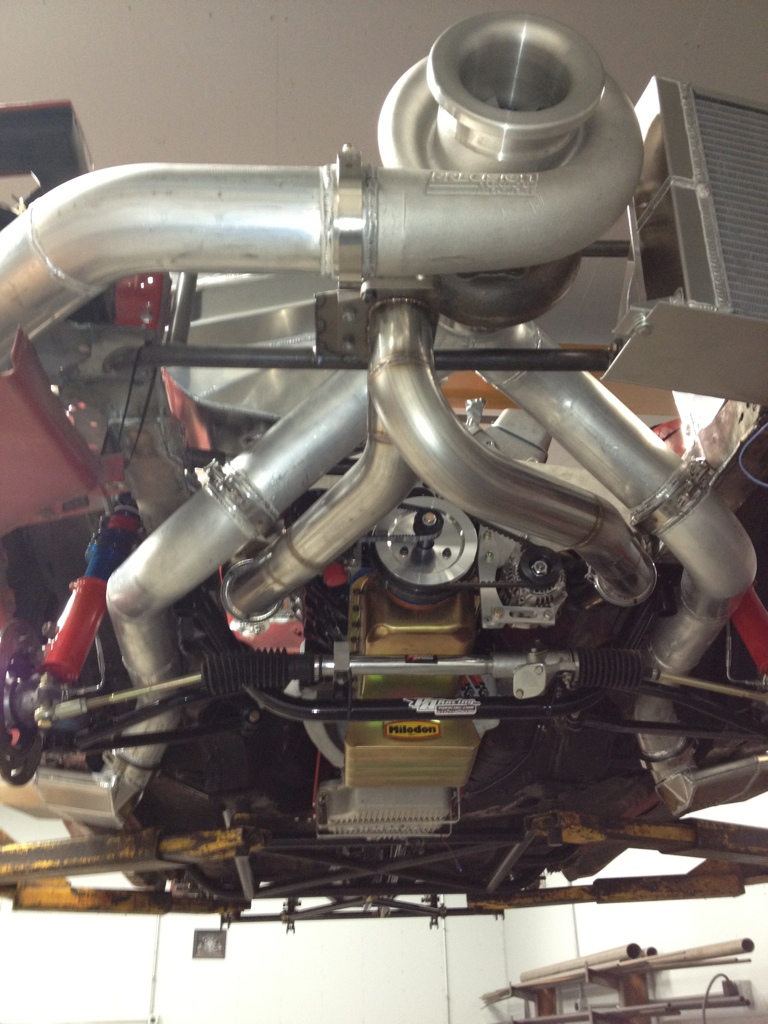

The downpipes are all aluminum. Here are some pics of the exhaust ends.
