CS-130 alternator question PICS

Reply

Thread Tools Search this Thread
Old 04-15-2018, 03:57 PM   #1
Member
Thread Starter

Join Date: Dec 2001
Posts: 212


CS-130 alternator question PICS

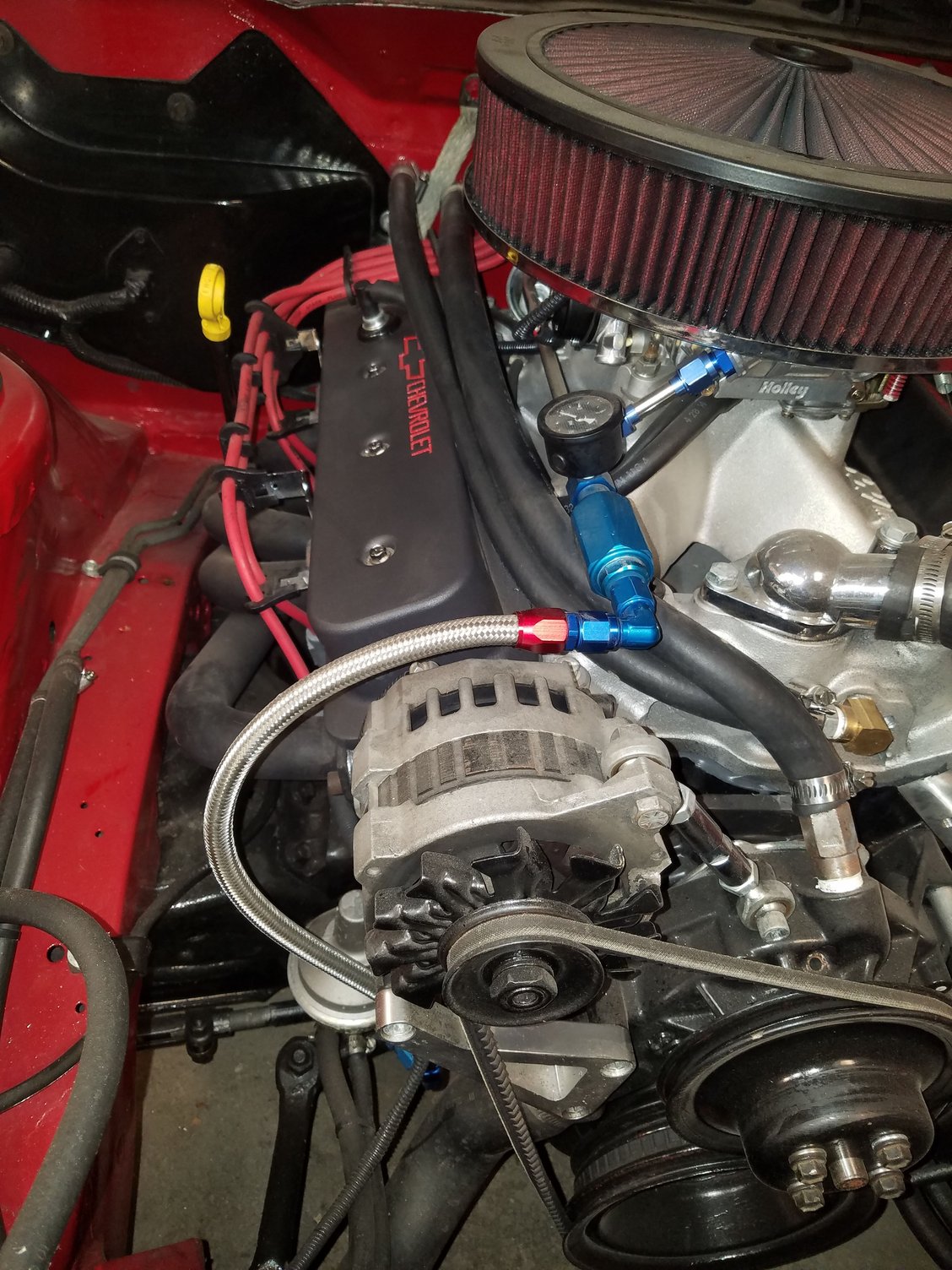

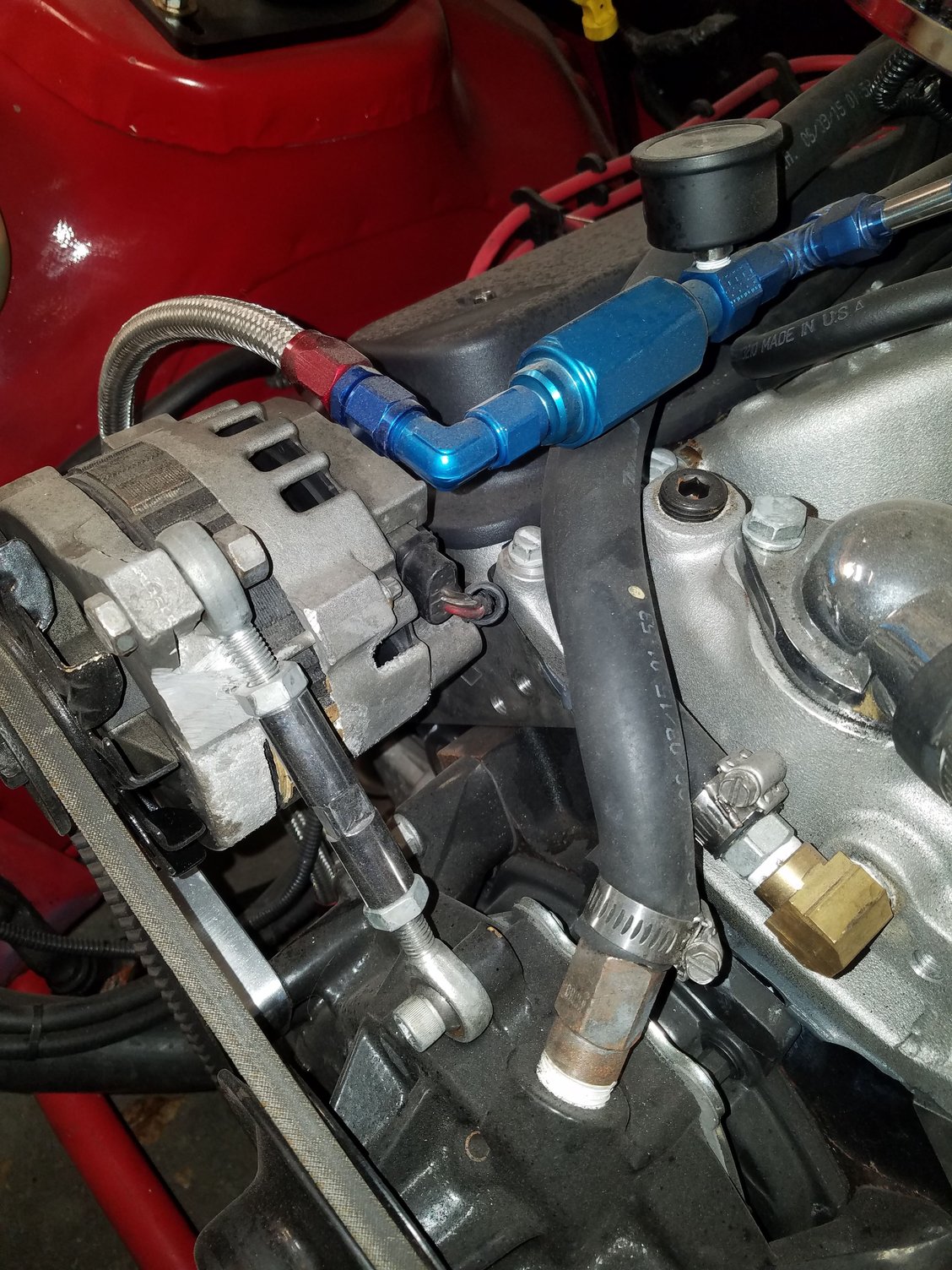

I'm looking to replace this with a new chrome one. I want the same wiring configuration.

This is a cs-130 right?

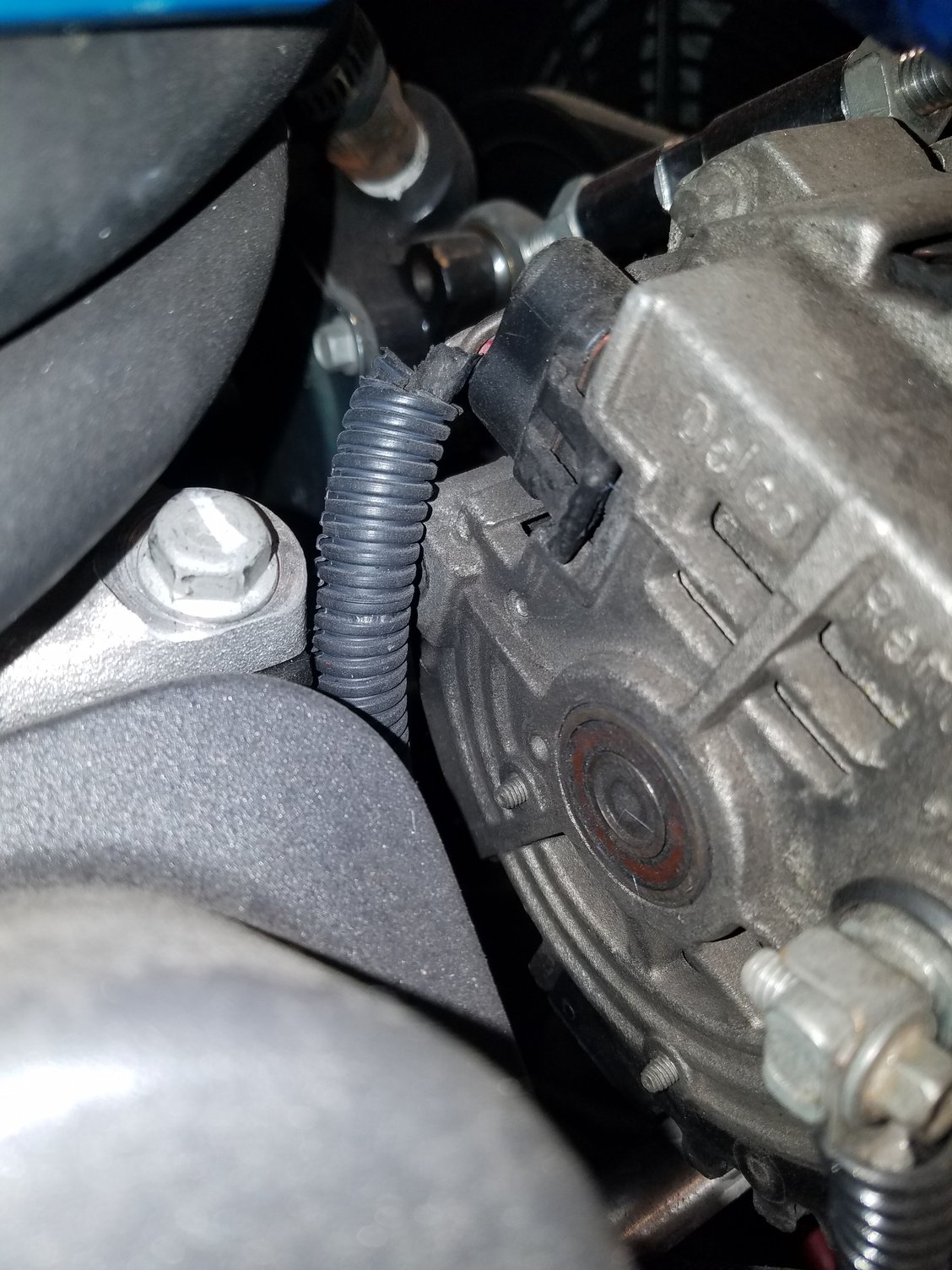

Which ones will have that 3 wire connector?

Electrically what is the difference between 1 wire and 3 wire.




Last edited by BuiltZ28; 04-15-2018 at 04:02 PM.
BuiltZ28 is offline   Reply With Quote
Old 04-15-2018, 03:58 PM   #2
Member
Thread Starter

Join Date: Dec 2001
Posts: 212


Re: CS-130 alternator question PICS


BuiltZ28 is offline   Reply With Quote
Old 04-15-2018, 04:00 PM   #3
Member
Thread Starter

Join Date: Dec 2001
Posts: 212


Re: CS-130 alternator question PICS

BuiltZ28 is offline   Reply With Quote
Old 04-15-2018, 09:22 PM   #4
Moderator

Vader's Avatar

Join Date: Jan 2000
Posts: 18,471


Re: CS-130 alternator question PICS

That looks like the typical external fan CS-130.

Most will have a 4-wire connector, one large and three small contact in the connector. The 10SI version had a flat 2-wire connector.
Vader is offline   Reply With Quote
Old 04-16-2018, 12:34 PM   #5
Member
Thread Starter

Join Date: Dec 2001
Posts: 212


Re: CS-130 alternator question PICS

So every cs 130 should have that plug? With that being said can you tell if mine is of a 1 wire or 3 wire design?
BuiltZ28 is offline   Reply With Quote
Old 04-16-2018, 01:14 PM   #6
Supreme Member

Join Date: Jan 2009
Location: belle fourche,s.d.
Posts: 1,718
Car: '82 z28
Engine: L83 5.7
Transmission: 700r4-1985
Axle/Gears: 3.42 posi

Re: CS-130 alternator question PICS

that one is a 3-wire:2 to the regulator plug,and the output wire-all stock cs130s are like that,the "one wire"alternators are an aftermarket modification and only have the output wire.
8t2 z-chev is offline   Reply With Quote
Old 04-16-2018, 01:36 PM   #7
Member
Thread Starter

Join Date: Dec 2001
Posts: 212


Re: CS-130 alternator question PICS

Ok awesome so any cs130 listed as a 3 wire should be plug and play? You guys are the best
BuiltZ28 is offline   Reply With Quote
Old 04-16-2018, 02:01 PM   #8
Supreme Member
iTrader: (14)

Tibo's Avatar

Join Date: Jun 2003
Location: Desert
Posts: 4,386
Car: 1991 Z28 Vert
Engine: 383 single plane efi
Transmission: T-56
Axle/Gears: waiting to break


Re: CS-130 alternator question PICS

Quote:
Originally Posted by BuiltZ28 View Post
Ok awesome so any cs130 listed as a 3 wire should be plug and play? You guys are the best
Not sure, they may be clocked differently. I thought there were two or three different case clockings available.
Tibo is offline   Reply With Quote
Old 04-16-2018, 07:46 PM   #9
Member
Thread Starter

Join Date: Dec 2001
Posts: 212


Re: CS-130 alternator question PICS

I think there is a 12 and 6 o clock (straight), a 2 and 6 o clock (offset right) and a 6 and 10 (offset left). Im just trying to make sure they all have the same plug

Last edited by BuiltZ28; 04-16-2018 at 07:49 PM.
BuiltZ28 is offline   Reply With Quote
Old 04-24-2018, 05:23 AM   #10
Supreme Member
iTrader: (2)

83 Crossfire TA's Avatar

Join Date: Jun 2001
Location: DC Metro Area
Posts: 7,648
Car: 87TA 87Form 71Mach1 12SHO 04Cummins


Re: CS-130 alternator question PICS

All CS130s will have the same wiring connections. There are 2 different case lug/bolt hold configurations (the straight across one used in '87, and the one with the bolt holes about 120* apart like used on the serpentine and V6 setups). Those 2 cases could be clocked 4 different ways each, but that's easy to change.
83 Crossfire TA is offline   Reply With Quote
