does anyone have a really detailed wiring diagram for an 89 iroc?
there are so many splices and dead ends in my wiring because of add ons and crap i can hardly figure anything out.
i have the haynes manual but i need some really good ones like from out of a tech manual or something.



Best book is the Helms factory manual.
I have one for an 85 but can not locate it since the move.
Take a look on ebay, they are there now and then,it is the best book you will find for a Camaro.



ok ill see if i can find one.



Let me know what ya need.



i could use whatever would help me with the under dash wiring most of all.
also the transmission, tail/brake light, and whatever is associated with the hatch release.
the guy i bought the car from said he would send me the tech manual he bought but that might be a long time coming so it would be nice to have what i need just to get it legal for now.



i can get wiring diag's for things in the dash you just gotta let me know what you mostly need.
and about the transmission what kind of issues are you having with it? and i assume its a auto right?


Here the hatch diagram.

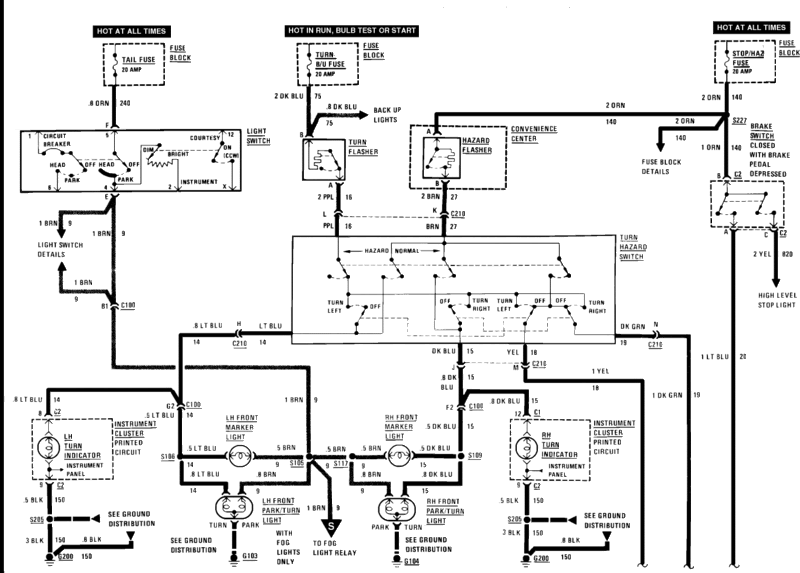

Heres tail lights its kinda 2 small print it to see easier or zoom
'
If you need any help figuring out the wiring diagram lemm kno
GL



actually i just got the manual today!
the guy sent it without telling me until it got here.
it actually looks exactly like the pictures you just posted.
thanks for getting those though man, i appreciate it greatly.
and it was auto, but its been swapped to a 6 speed, thank God.



thats sick, a 6 speed bolts up to that engine with no major mods? does it got the hydraulic clutch too?



im not entirely sure, as i just bought it like a month ago with all the work already done. but from what i can remember about what ive read it does. check out this thread. its got pretty much all the information on the swap.
https://www.thirdgen.org/forums/tran...ap-thread.html
