Need the braces pictured

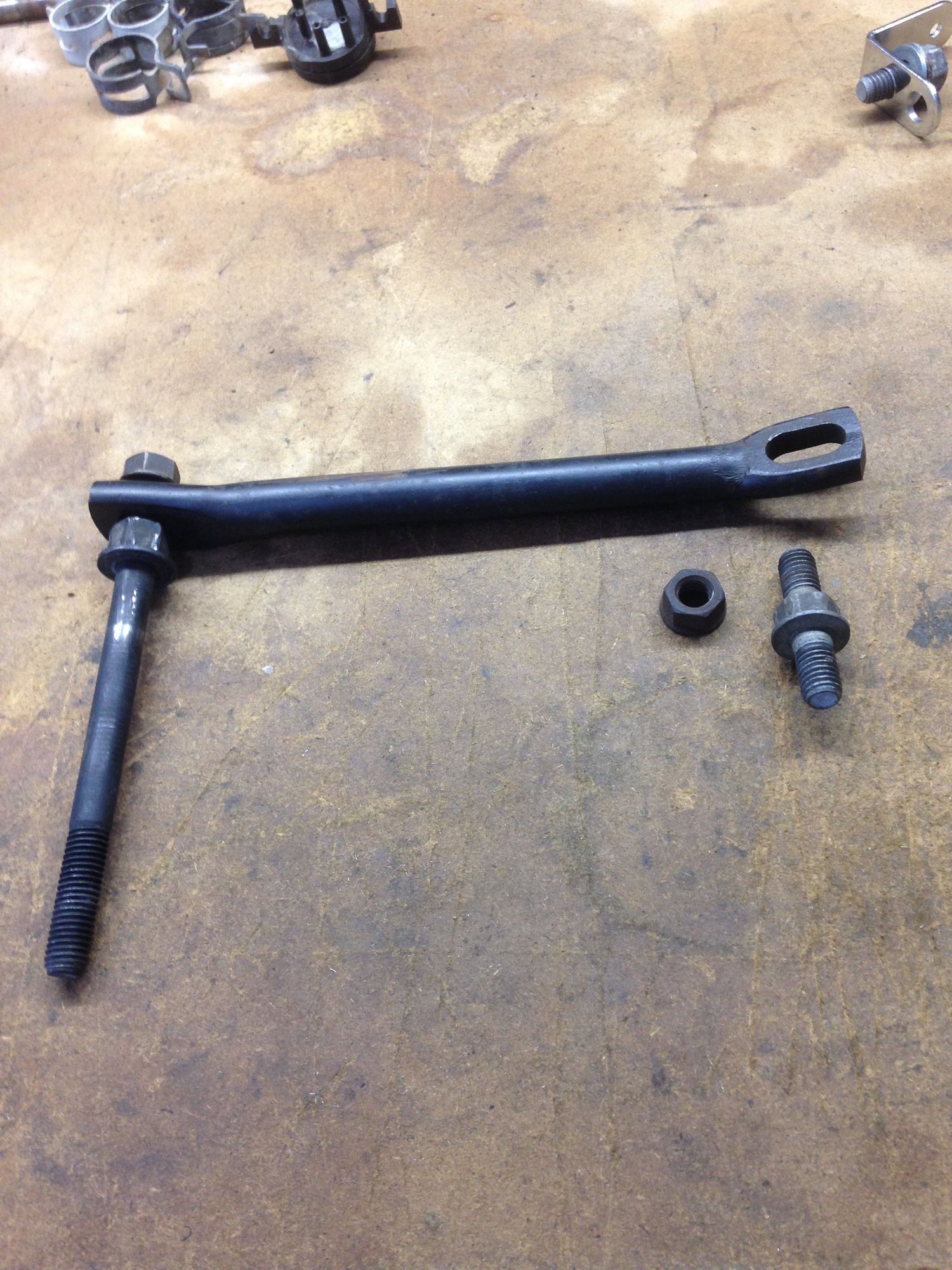

Inside ac to intake manifold

Inside ac to intake manifold

Inside alt to intake manifold

Ps pump to exhaust manifold

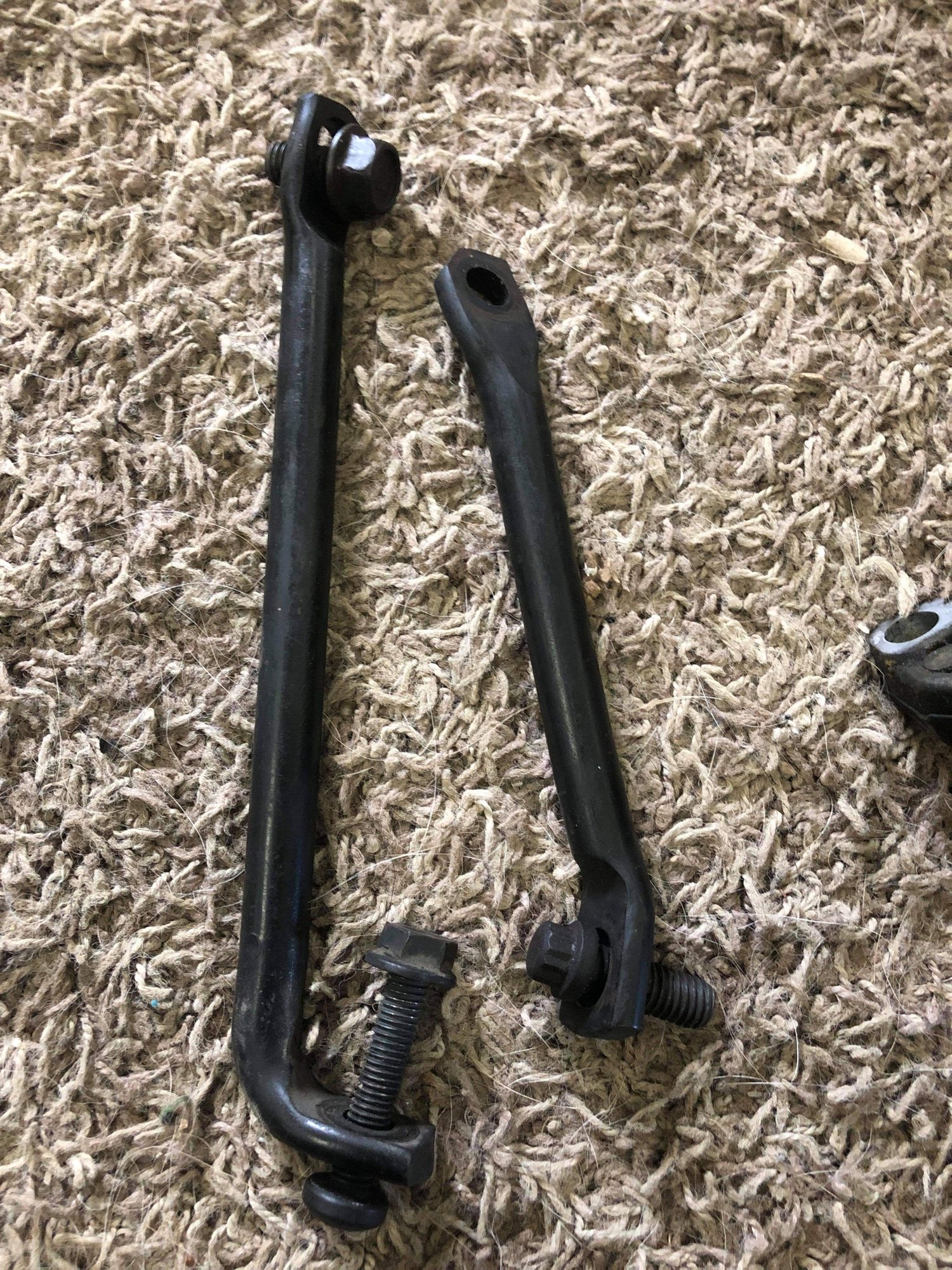

Inside alt to manifold (left) and ps to exhaust manifold (right)



OOPS



I have a bunch of TBI braces, but looks like you are looking for TPI ones/ Most are the same but maybe not all?



the inner ac one is tbi only and the rest are the same tpi or tbi so please text me pics 6128602513



I'm kinda Low-tech. Could you give me an email to send to?
Thanks



Also, I'm a little confused. How many braces are you looking for in total? The top pic shows back of AC to intake. That one I have. Second pic down, same brace?
3rd pic down shows back of alt to intake. That part does not exist on a TBI. 4th down, I can't tell what that is.5th pic with captions says inside alt to manifold, again not a TBI part.
PS to exhaust manifold? PS pump in that big bracket with no braces to anywhere on a TBI. Either the captions are incorrect or ?????

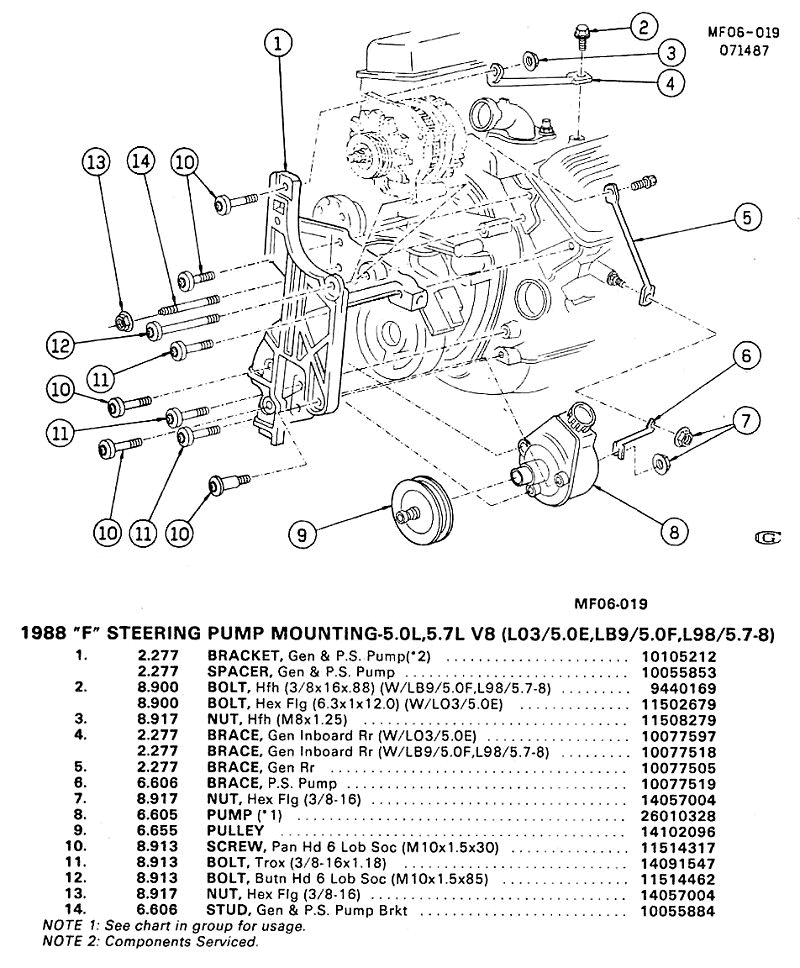

Have any of this on a page from a manual? Anyways, I have the first one but if you want to get them all in the same place I don't believe I can do that. I'll try and look at the 92 Camaro shop manual and see if that helps at all



the ps and inner alt are 88 only won’t be on a 92

Need #2 tbi (l03) on all 88-92 cars

I need #6 power steering brace And I need #4 inner alt brace. Both are 1988 only



brett.thomas31@gmail.com



Ah, didn't know there was any difference on serpentine design between 88-92. Have no bolts. Still want a pic of #2 if that's all I can get you?



sure



Hi, sorry it's taking so long. Family issues...
I dug up a box of misc braces from 3rd gen cars and may have more of what you want, but my car's a 92 so I have nothing to compare to. I'll send pics and dimensions to you and see if you can tell if these are the right ones
or not soon



sounds good
