Whats this
05-12-2012, 10:13 AM
#1
Member
Thread Starter
iTrader: (1)
Join Date: Apr 2011
Location: San Diego CA
Posts: 351
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 RS Camaro,70 chevelle,92 Geo
Engine: 305 TBI
Transmission: 5 Speed Manual

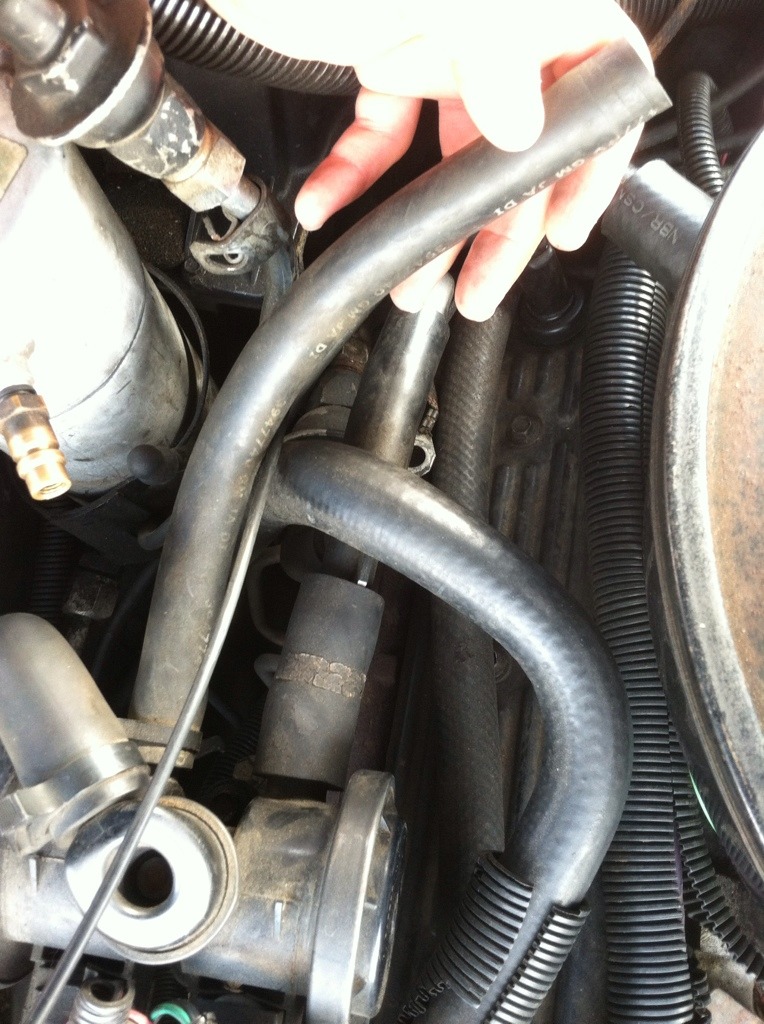

Whats this
some sort of ground
Smog Pump... where does that connect to?
Small cable... dunno what it is... thanks for the help
05-12-2012, 10:21 AM
#2
Supreme Member
iTrader: (3)
Join Date: Mar 2003
Location: Rockledge, PA
Posts: 1,121
Likes: 0
Received 0 Likes
on
0 Posts
Re: Whats this
First pic engine ground, needs to attach to the back of the cyl head.
Second pic, look for the part of the air system that doesn't have anything connected to it (the crossover pipe from the driver side manifold, the down pipe to the converter or the pass side manifold)
Third could be the vacuum hose that goes to the heater diverter valve, hard to tell from that pic/angle
Second pic, look for the part of the air system that doesn't have anything connected to it (the crossover pipe from the driver side manifold, the down pipe to the converter or the pass side manifold)
Third could be the vacuum hose that goes to the heater diverter valve, hard to tell from that pic/angle
05-12-2012, 10:22 AM
#3
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,089
Received 1,681 Likes
on
1,276 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Whats this
1. should go to a bolt on the rear-facing surface of the pass side head
2. hard to tell which one it is for sure, but either goes to the AIR pump, or to one of the AIR check valves
3. vacuum line in HVAC system; could be either the "supply" line, or the one to the heater control valve
2. hard to tell which one it is for sure, but either goes to the AIR pump, or to one of the AIR check valves
3. vacuum line in HVAC system; could be either the "supply" line, or the one to the heater control valve
05-12-2012, 10:34 AM
#6
Member
Thread Starter
iTrader: (1)
Join Date: Apr 2011
Location: San Diego CA
Posts: 351
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 RS Camaro,70 chevelle,92 Geo
Engine: 305 TBI
Transmission: 5 Speed Manual
Re: Whats this
im getting knock sensor..... EGR and O2 sensor.... lets see if this fixes the problems =/
05-12-2012, 10:54 AM
#7
Member
Thread Starter
iTrader: (1)
Join Date: Apr 2011
Location: San Diego CA
Posts: 351
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 RS Camaro,70 chevelle,92 Geo
Engine: 305 TBI
Transmission: 5 Speed Manual
Re: Whats this
I cheated... I conected the wire to valve cover nut... I have the fuel ground the same way
Trending Topics
05-12-2012, 11:33 AM
#10
Supreme Member
Join Date: Jun 2005
Location: Sydney, Australia
Posts: 1,380
Likes: 0
Received 5 Likes
on
5 Posts
Car: '86 TA
Engine: '74 350
Transmission: 700r4
Axle/Gears: 2.77
Re: Whats this
Needs to connect to a firm bolt on the block/heads that won't come undone; vc nuts tend to back off over time.
05-12-2012, 12:09 PM
#12
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,712
Received 760 Likes
on
514 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Whats this
Yeah its a very tough spot to work in. I get em from the bottom with the trans Xmember undone.
That air tube also goes to the ground stud on the back of the head.
That air tube also goes to the ground stud on the back of the head.
05-14-2012, 02:46 PM
#13
Junior Member
Join Date: Mar 2011
Location: Alamogordo, NM
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
Car: '87 IROC-Z
Engine: 350ci
Transmission: 700r4 rebuilt
Axle/Gears: 3.73
Re: Whats this
My ground is just connected to the rear-most header bolt. Of course I have no smog/AC/heater/kitchen sink to get in the way...
05-17-2012, 11:30 AM
#14
Junior Member
Join Date: Mar 2012
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 IROC-Z
Engine: 305 TBI
Transmission: TH 350
Re: Whats this
Is the last one a small cable or a vacuum line. If it's a vacuum line check this out https://www.thirdgen.org/forums/tbi/...egr-valve.html scroll down and find the diagram
05-17-2012, 11:33 AM
#15
Member
Thread Starter
iTrader: (1)
Join Date: Apr 2011
Location: San Diego CA
Posts: 351
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 RS Camaro,70 chevelle,92 Geo
Engine: 305 TBI
Transmission: 5 Speed Manual
Re: Whats this
Suposedly thats for an automatic... 5 speed require a t for the air pump
